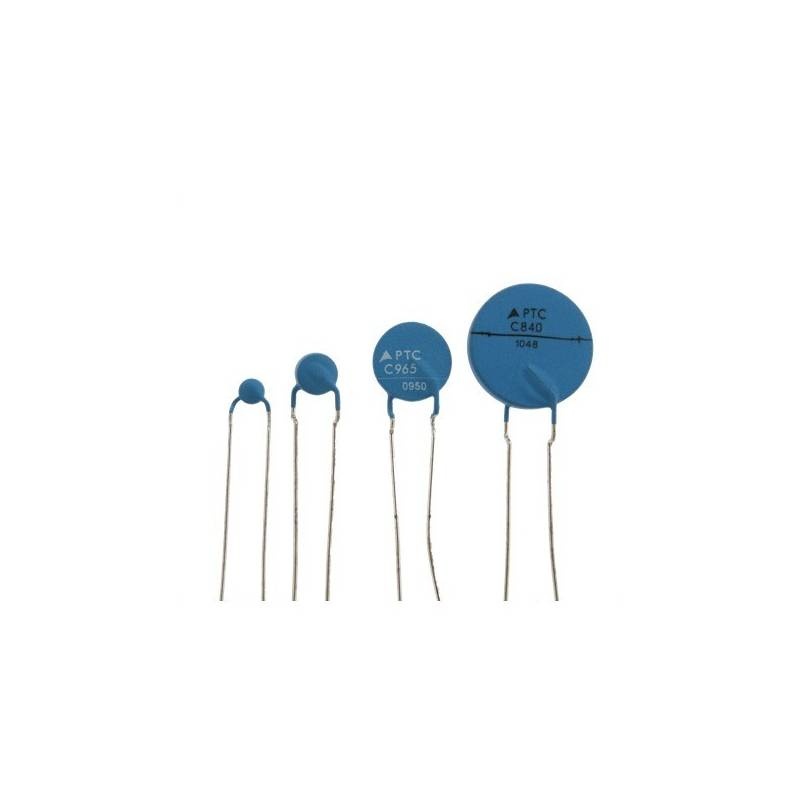

TERMISTOR PTC 6 R/265 V

Descriere

PTC Thermistor 265V 80° 6R 4,1A

Features
• Ceramic PTC Thermistors provide overcurrent protection for single-phase motors, transformers etc. as well as electronic circuits (subscriber line interface cards)
• The ceramic PTC resistor contrary to PTC's are polymer-based and after repeated cooling returns to its initial resistance value
• By responding to inadmissibly high currents and protecting pre-selected temperature limits which have been exceeded; the thermal dissipation from the complete power circuit is limited, as the increased resistance of the current is reduced to a harmless residual value
• The PTC resistor must not be exchanged after the maximum temperature has been exceeded, as after a short cooling period, the protective function immediately takes over
• Overcurrent and short-current protection
• Leaded discs coated
• Pitch 5,08mm

Technical Specifications
• Operating Voltage (TA = 60°C): 265V
• Rated Voltage: 230V
• Resistance Tolerance: ±25%
• Switching Cycles: 100
• Temperature Range
– U = 0: -40...+125°C
– U = UMax.: 0...+60°C

• Operating Voltage, Max. (60 °C): 265V
• Ambient Temperature: 80°C
• Rated Resistance: 6.0 Ohm
• Rated Current: 170mA
• Switching Current: 350mA
• Max. Permissible Switching at UMax.: 4.1A
• IR = Residual Current at UMax.: 10mA
• Dimensions:
– bMax.: 17.5mm
– Ø d: 0.6mm
– hMax.: 21.0mm
