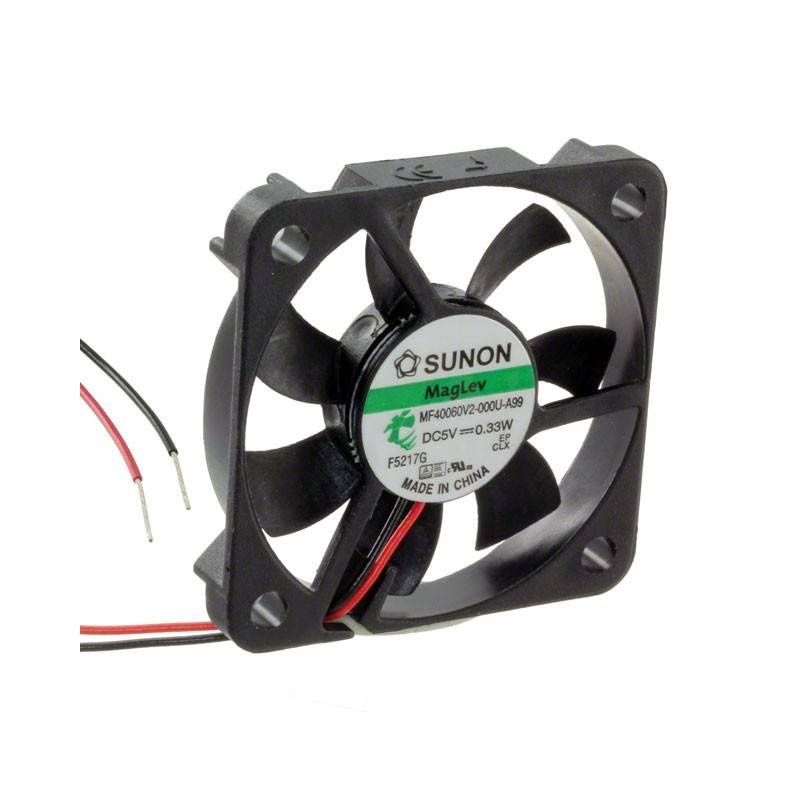

VENTILATOR 5V 40x40x6mm 9.3mc/h

Cod produs - SKU 25785
PN: MF40060V21000UA99
In stoc
35,90 LEI
29,67 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 6
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Ce spun clientii

Descriere

Fan 5V 40x6 V 9,3m³/h 25,7dBA

Design
• Motor:
- Patented One-phase Single Coil
- DC Brushless Motor Design
• Nr. of Motor Poles: 4
• Frame, Impeller: Filled Thermoplastic PBT (UL94V-0)
• Bearing System:
- Vapo
- With Magnetic Levitation System
• Lead Wire: AWG28, Stripped, Tinned

Technical Specifications
• Rated Voltage: 5V DC
• Operating Voltage: 2,5...5,5V DC
• Dielectric Strength at 65% r. F.: 500V AC for 1 Min.
• Insulation Resistance at 500V DC : 10MOhm
• Storage Temperature: -40...+70°C
• Operating Temperature: -10...+70°C

• U rated: 5V
• Airflow: 9.34 m³ / h
• Noise: 25.7dBA
• I: 0.065A
• Rated Power and Current Tolerance, ±15%: 0.33W
• Speed: 6000 RPM

Detalii

SKU
25785
Categorii
Ventilatoare
Greutate
0.01 kg
Brand
SUNON
Viteza rotatie
6000 rot./min
Tip ventilator
Axial
Terminale
Cablu 2 fire
Tensiune alimentare
5V DC
Sistem lagare
Vapo
Nivel zgomot [dBA]
25.7 dBA
Material elice
Termoplastic
Material caseta
Termoplastic
Dimensiuni (L x l x h)(mm)
40 x 40 x 6 mm
