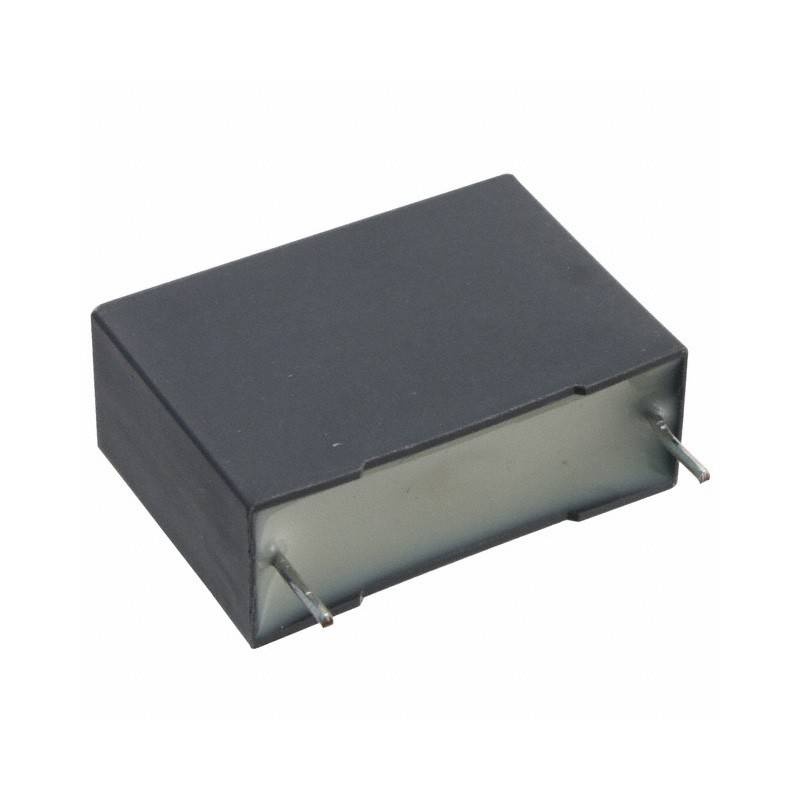

Condensator MKP/MKT 10 NF/275 V

Cod produs - SKU 646
PN: C46NF010
In stoc
2,00 LEI
1,65 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 38
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

MKP Capacitor 10nF X2 275V P15

Features
• Dielectric polypropylene film. Aluminium layer plates deposited by evaporation under vacuum
• Box material is solvent resistant and flame retardant (UL94V-0), no impregnation
• Low attenuation
• Low dissipation factor (tan d)
• High pulse strength (du/dt)
• High insulation resistance

Technical Specifications
• Rated Voltage (50/60Hz): 275V AC
• C463NF470: 300V AC
• Capacitance Tolerance: ±20%
• Temperature Range: -40...+110°C
• Climatic Category (IEC60068-1): 40/100/56
• Insulation Resistance, Min.
to incl. 330nF: 1x10 (5)MOhm
from 330nF: 30000s
• Dissipation Factor Tan d (1kHz, ±25°C), Max.: 10x10 (-4)

• Rated Capacitance: 10nF
• Pulse Strength, Max. at 390V DC: 400V / µs
• B: 5mm
• H: 11mm
• L: 18mm
• P: 15mm
• Ø: 0.6mm
