NITURI 0.8 mm PENTRU FAVORIT

Cod produs - SKU 3384
PN: 9676
Stoc epuizat
112,00 LEI
92,56 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Acest produs nu este disponibil momentan. Vrei sa te anuntam cand revine?
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Ce spun clientii

Descriere

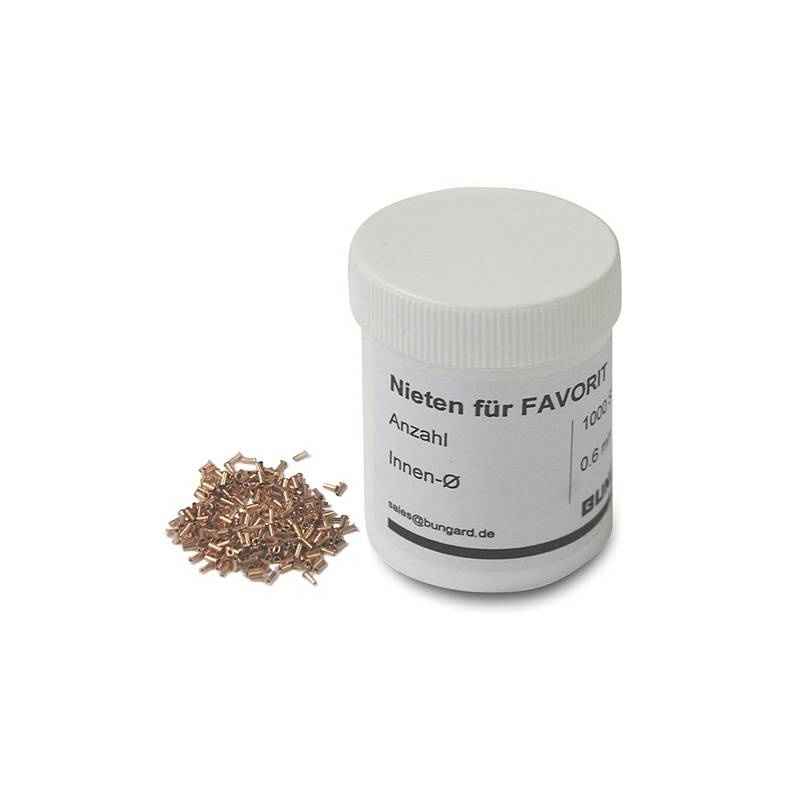

Nituri 0.8mm pentru FAVORIT

It's so easy - because it's BUNGARD.

With our high quality rivets and our famous FAVORIT you will ever get the best results.
Standard: Tubular Rivets according to DIN 7340,
Form A

Material: Copper, blank

New !
For the Bungard CCD we offer special brass tubular rivets with outer diameter 3.0 mm. With a special tool for Favorit you can use these rivets to arrange and fix multilayer boards before pressing.

Similar, but of shorter length are the fixing pins for Hellas/Filmstar to fix the layout to the pcb durcing exposure.

Measures:
• Inner diameter: 0.8mm
• Outer diameter (± 0.03mm): 1.0mm
• Length (± 0.10mm): 2.2mm
• Head diameter (± 0.15mm): 1.6mm
• Wall thickness (± 10%): 0.1mm
Drill diameter: When drilling on CNC machines, the drill diameter should be 0.1 mm larger than the above outer diameter.
