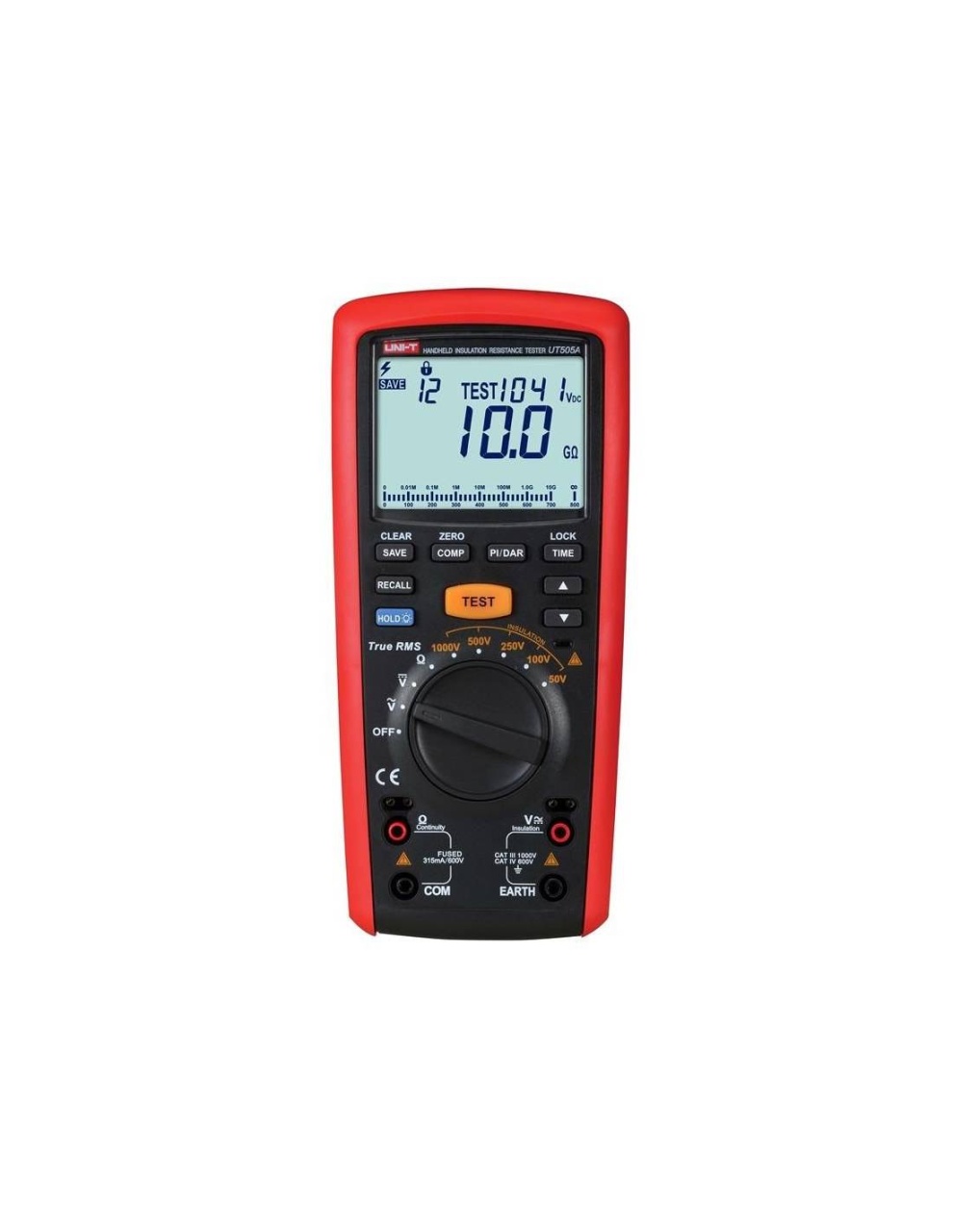

TESTER REZISTENTA IZOLATIE UNI-T UT505B

Descriere

• Domenii pentru resistenta de izolatie

-50V (50V/100V/250V/500V/1000V: 0%~20%)
0,01MOhm ~ 50MOhm: ±(3%+3)
50MOhm ~ 1GOhm: ±(3%+3)

-100V
1GOhm ~ 10GOhm: ±(10%+3)
0,01MOhm ~ 100MOhm: ±(3%+3)
100MOhm ~ 1GOhm: ±(3%+3)

-250V
1GOhm ~ 20GOhm: ±(10%+3)
0,01MOhm ~ 200MOhm: ±(1,5%+5)
200MOhm ~ 1GOhm: ±(1,5%+5)

-500V
1GOhm ~ 50GOhm: ±(10%+3)
0.01MOhm ~ 500MOhm: ±(1.5%+5)
500MOhm ~ 1GOhm: ±(1,5%+5)

-1000V
1GOhm ~ 100GOhm: ±(10%+3)
0.1MOhm ~ 2000MOhm: ±(1.5%+5)
2GOhm ~ 9.9GOhm: ±(5%+3)
10GOhm ~ 20GOhm: ±(7%+3)
20GOhm ~ 200GOhm: ±(20%+3)

• Rezistivitate joasa 0,01 Ohm ~ 100 Ohm (optional aproximativ 5V/>200mA / 20mA) ±(1,5%+3)
• Rezistivitate totala: 0,01kOhm ~ 10MOhm ±(3%+3)
• Tensiune DC: 0V... 600V ±(2%+3)
• Tensiune AC: 0V... 600V ±(1,5%+5)
• Frecventa: 45...1kHz ±(0,1%+3)
• Capacitate: 100pF...500uF ±(5%+5)
• Afisare: 6000
• Scalare automata
• TrueRMS
• Masurarea tensiunii în trepte
• Masurare DAR
• Masurare PI
• Descarcare automata
• Verificare automata a sigurantelor
• Bara grafica analogica(bargraph)
• Indicator de continuitate
• Masurare comparativa
• Indicator baterie consumata
• Alimentare: 6 x AA
• Dimensiuni display: 78 x 59 mm
• Dimensiuni: 103x225x59mm
• Masa: 630 g
