VARISTOR SIOV S05K300

Cod produs - SKU 4597
PN: 10541
In stoc
3,50 LEI
2,89 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 13
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Ce spun clientii

Descriere

Features
• Round varistor element, wired
• Epoxy resin coating, flame retardant to UL94V-0
• No derating up to 85°C ambient temperature

Technical Specifications
• Storage Temperature: -40...+125°C
• Temperature Range: -40...+85°C
• Test Voltage: 2500Vrms
• Insulation Resistance: >10MW
• Response Time: <25ns
• AC Operating, Max.: 300V AC
• DC Operating Voltage, Max.: 385V DC
• Varistor Voltage (1mA): 470V
• Tolerance of Varistor Voltage: ±10%
• Max. Clamping Voltage: 775V
• Peak Current (8/20µs), Max.: 400A
• Energy Absorption, Continuously Rated, Max.: 9.6J
• Max. Dissipation Power: 0.1W
• Typical Capacitance: 45pf

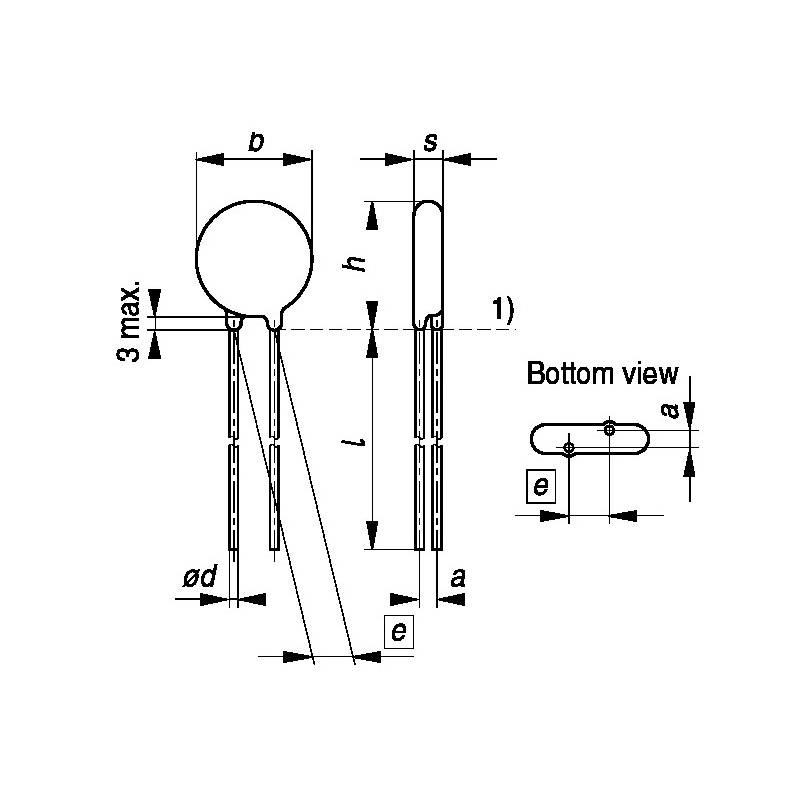

Dimensions (mm):
• e±1: 5.0
• a±1: 2.1
• bMax.: 7.0
• sMax.: 4.5
• hMax.: 8.5
• lMin.: 30.0
• d±0,05: 0.6
