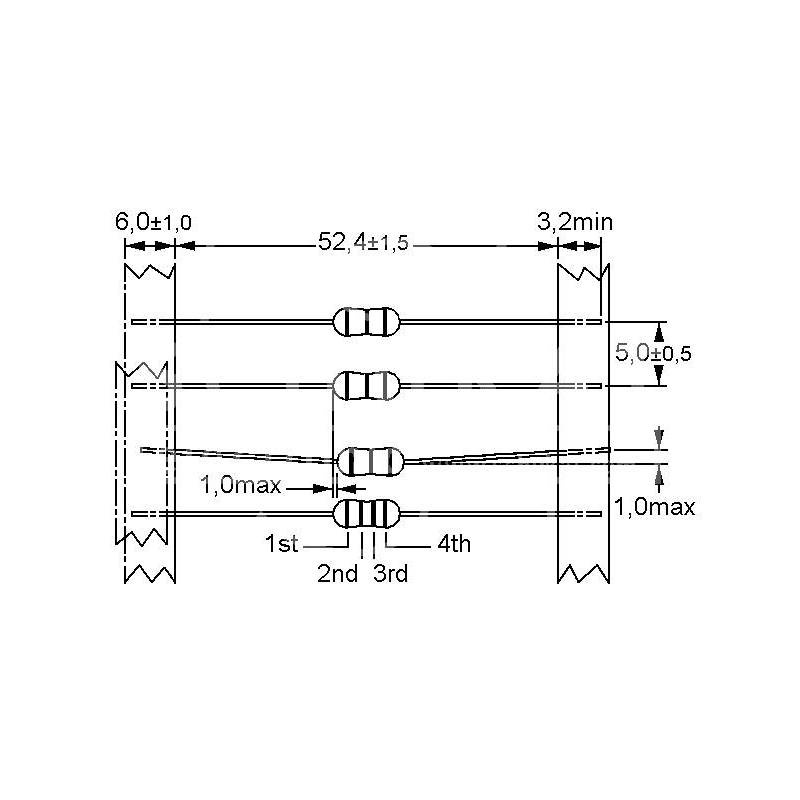

• BOBINA 470uH 90mA miniatura - Img 1

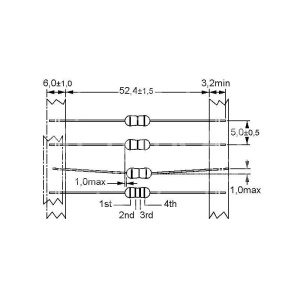

  • BOBINA 470uH 90mA miniatura - Img 2

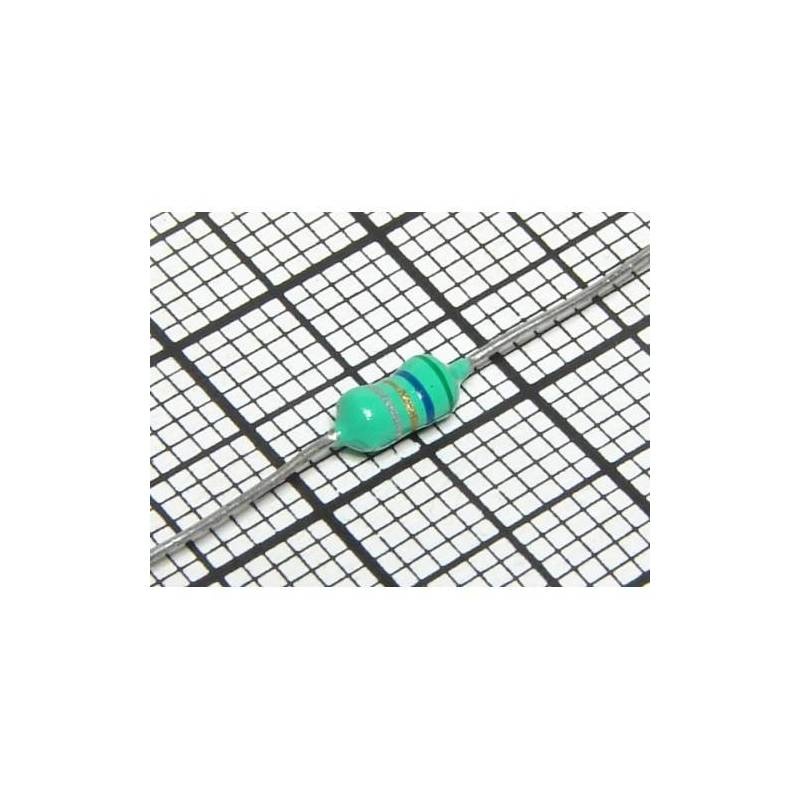

BOBINA 470uH 90mA miniatura

Cod produs - SKU 11817
PN: EC24-471K
In stoc
1,00 LEI
0,83 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 93
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Application:
• Decoupling and interference suppression of circuits within the HF/NF range

Features:
• Small miniature fixed inductors
• High resonant frequency and quality class due to the special features of the ferrite core
• The epoxy resin lacquer finish provides a very good protection against humidity which increases the operating life
• Heatproof design for safe application in switching circuits

Technical Specifications:
• Temperature Range: -20...+100°C
• Dielectric Strength: 250Vrms
• Inductance (DL): ±10%

• L [µH] : 470
• Q : 60
• fQ [MHz] : 0,796
• f [MHz] : 2,56
• RDC Ω : 17,5
• IN [mA] : 90
L = Inductance,
Q = Quality Class, Min.,
fQ = Testing Frequency of L and Q,
f = Resonance Frequency, Min.,
RDC = DC Resistance, Max.,
IN = Rated DC Current
