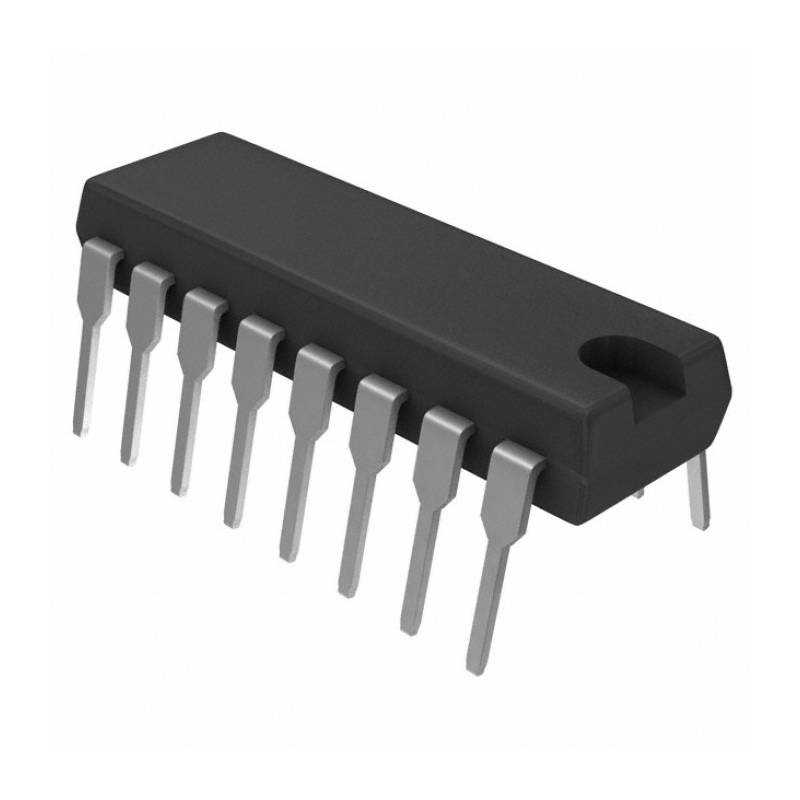

Circuite CMOS seria 4000 CD4016
Descriere
Features
• Wide supply voltage range: 3V to 15V
• Wide range of digital and analog switching: ±7.5 VPEAK
• “ON” resistance for 15V operation: 400W (typ.)
• Matched “ON” resistance over 15V signal input:
DRON = 10W (typ.)
• High degree of linearity:
0.4% distortion (typ.)
@ fIS = 1 kHz, VIS = 5 Vp-p,
VDD-VSS = 10V, RL = 10 kW
• Extremely low “OFF” switch leakage:
0.1 nA (typ.)
@ VDD - VSS = 10V
TA = 25°C
• Extremely high control input impedance: 1012W (typ.)
• Low crosstalk between switches:
-50 dB (typ.)
@ fIS = 0.9 MHz, RL = 1 kW
• Frequency response, switch “ON”: 40 MHz (typ.)
Applications
• Analog signal switching/multiplexing
Signal gating
Squelch control
Chopper
Modulator/Demodulator
Commutating switch
• Digital signal switching/multiplexing
• CMOS logic implementation
• Analog-to-digital/digital-to-analog conversion
• Digital control of frequency, impedance, phase, and analog-
signal gain
