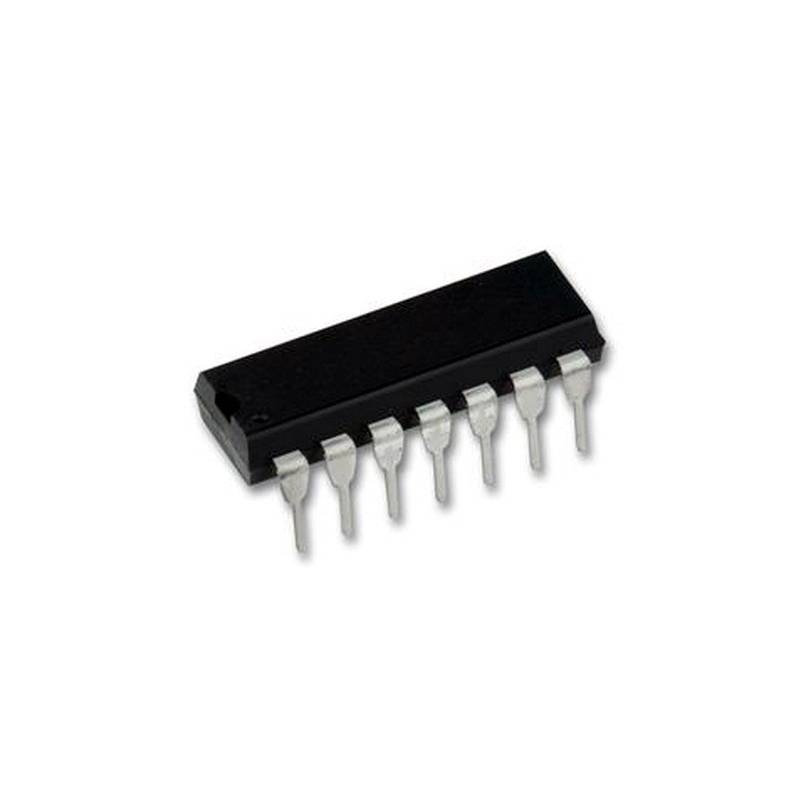

Circuite CMOS seria 4000 CD4077
Cod produs - SKU
8230
PN: CD4077BE
Stoc epuizat
4,50 LEI
3,72 LEI
(fara TVA)
Costurile de livrare nu sunt incluse
Descriere
Features
• High Voltage Types (20V Rating)
• CD4070BMS - Quad Exclusive OR Gate
• CD4077BMS - Quad Exclusive NOR Gate
• Medium Speed Operation
- tPHL, tPLH = 65ns (Typ.) at VDD = 10V, CL = 50pF
• 5V, 10V and 15V Parametric Ratings
• Standardized, Symmetrical Output Characteristics
• 100% Tested for Quiescent Current at 20V
• Maximum Input Current of 1A at 18V Over Full Package
Temperature Range; 100nA at 18V and +25oC
• Noise Margin (Over Full Package/Temperature Range)
- 1V at VDD = 5V
- 2V at VDD = 10V
- 2.5V at VDD = 15V
• Meets All Requirements of JEDEC Tentative Standard
No. 13B, “Standard Specifications for Description of
‘B’ Series CMOS Devices”
Applications
• Logical Comparators
• Parity Generators and Checkers
• Adders/Subtractors
Detalii
