MUFA MAMA PCB MICROUSB TIP B SMD 90

Cod produs - SKU 0148
PN: 712-1-S-BS0
In stoc
7,50 LEI
6,20 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 7
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

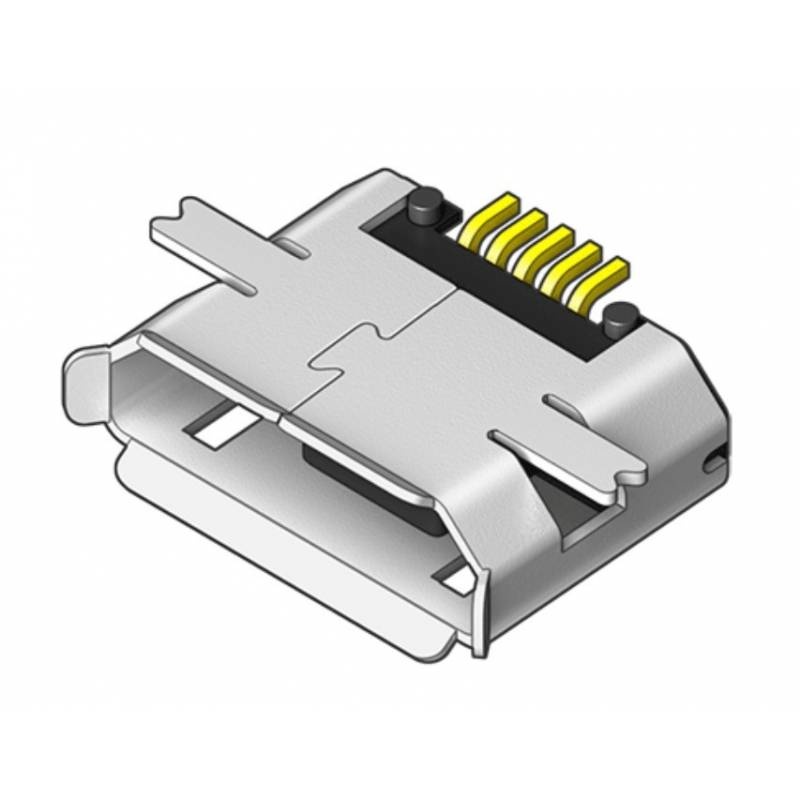

Micro USB Socket Type B SMD 5-Pole 90°

Features
• Micro USB sockets for SMD mounting
• 712-1-S-BS0: Micro USB socket type B

Technical Specifications
• Insulation Shell: High temp. Thermoplastic UL94V-0
• Contact Material: Phosphor Bronze
• Contact Surface: Au-plated
• Rated Current: 1,0A(1) or 1,8A/0,5A(2)
• Rated Voltage: 30VRMS/V DC
• Dielectric Strength (1Min.): 100VRMS
• Temperature Range: -30...+80°C
• Short Term (10s): +260°C

1) for Pin 1 to 5 or
2) 1,8A for Pin 1 and 5 and 0,5A for Pin 2 to 4

Detalii

SKU
0148
Categorii
USB
Tip conector
USB 2.0 micro B
Subtip conector
mama
Orientare spatiala
90°
Montare
SMD
