RELEU 12 V/12 A SPDT 360 R OMRON

Cod produs - SKU 18119
PN: G2RL1-12
In stoc

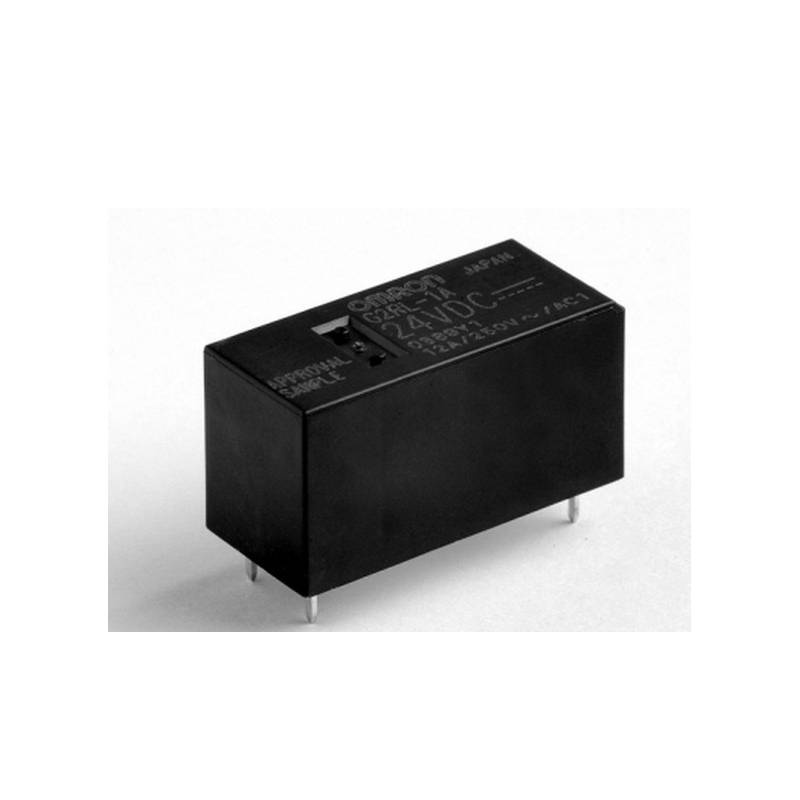

Releu Omron G2RL1-12

18,00 LEI
14,88 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 22
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Relay SPDT 12A 12V 360R

Features
• High sensitive coil: 400mV
• 10kV dielectric strength coil/contact

Technical Specifications
• Contact G2RL1_: SPDT
• Contact Material: AgSnIn
• Rated Current G2RL1_: 12A
• Max. Switching Voltage: 440V AC / 300V DC
• Max. Switching Power G2RL1_: 3000VA
• Creepage/Clearance: 8/8mm
• Operate/Release Time: 15/5ms
• Testing Voltage
Coil/Contact: 5000V AC
Contact/Contact G2RL1_: 1000V AC
• Lifetime Mechanical: 20 millions operations
• Operating Temperature: -40...+85°C
• Weight Approx.: 12g

Coil Data
• Rated Voltage: 12V DC
• Maximum Operating Voltage: 15.6V
• Operate Voltage: 8.4V
• Release Voltage: 1.2V
• Rated Current: 33.33mA
• Rated Power: 400mW
• Coil Resistance: 360Ohm
All Specifications Measured at 23°C

Denumire / cod producator: Omron G2RL1-12

Detalii

SKU
18119
Categorii
Relee
Greutate
0.01 kg
Tip releu
miniatura
Tip contacte
SPDT
Tensiune nominala bobina
12V DC
Tensiune max. comutata
440V AC
Temperatura °C
- 40...85
Sarcina admisibila [DC]
12A / 24V DC
Sarcina admisibila [AC]
12A / 250V AC
Montare
PCB
Curent max. contacte [A]
12
Descriere scurta

Releu Omron G2RL1-12
