RELEU 12 V/8 A 1xA 720 R

Cod produs - SKU 1076
PN: JE112DM
In stoc
12,50 LEI
10,33 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 5
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Relay SPST-NO 8A 12V 720R

Features
• Sensitivity coil 200mW
• 4kV dielectric strength coil/contact

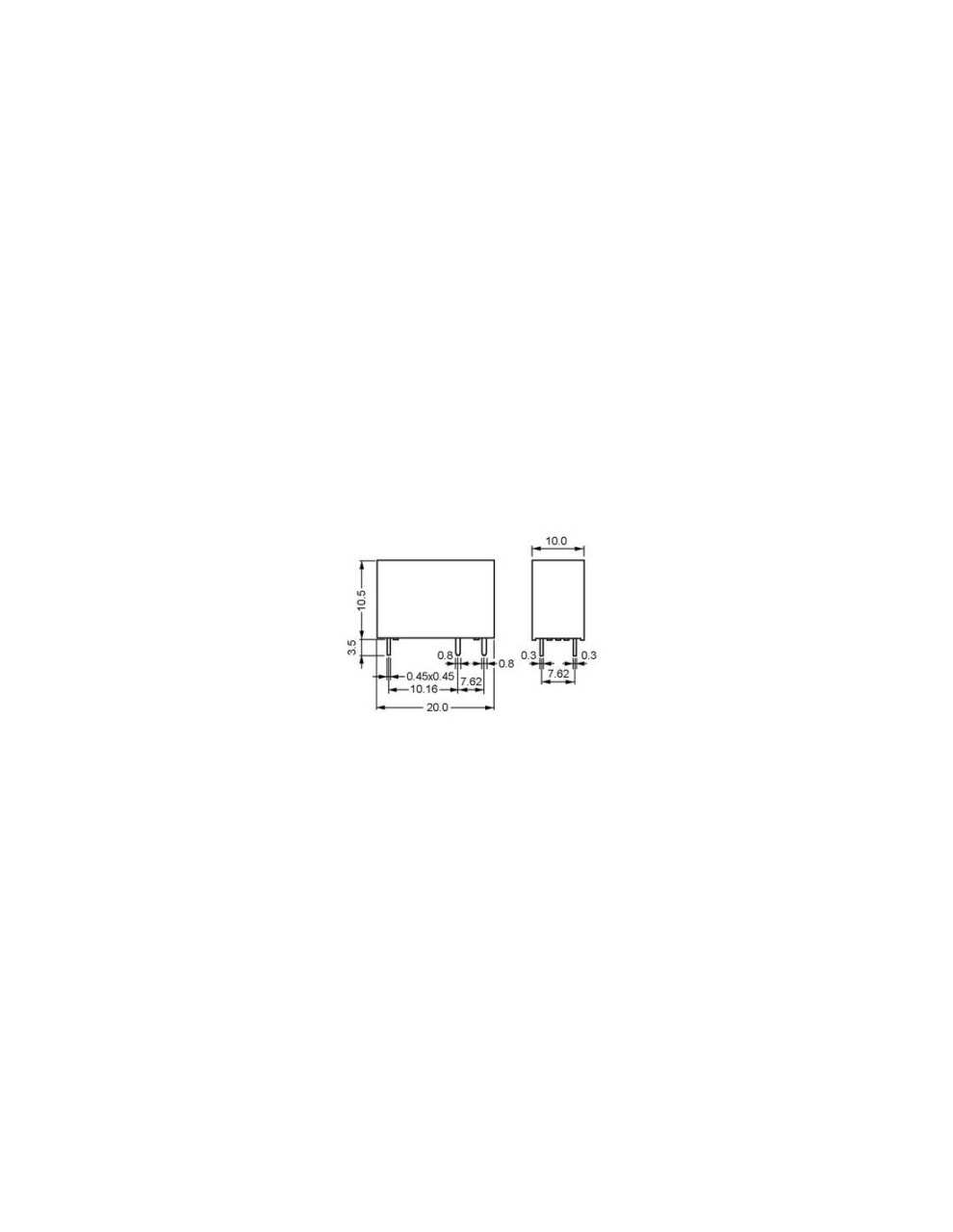

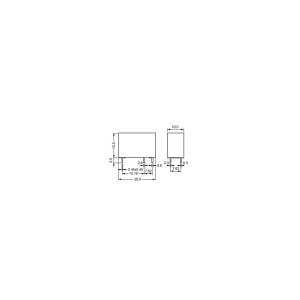

• Optimized height of 10,5mm

Technical Specifications
• Contact: JE_DM: SPST
• Contact Material: Ag Alloy
• Rated Current: JE_DM: 8A
• Max. Switching Current: JE_DM: 8A
• Max. Switching Voltage: 250V AC / 30V DC
• Max. Switching Power: JE_DM: 1500VA / 240W
• Operate/Release Time: 8/4ms
• Testing Voltage
- Coil/Contact: 4000V AC
- Contact/Contact: 1000V AC
• Lifetime
- Mechanical: 1x10^7 Operations
- Electrical: 1x10^5 Operations
• Operating Temperature: -40...+85°C
• Weight Approx.: 6g

Coil Data
• Rated Voltage: 12V DC
• Operate Voltage: 9.0V
• Release Voltage: 0.60V
• Rated Current: 16.7mA
• Rated Power: 200mW
• Coil Resistance: 720 Ohm
All Specifications Measured at 20°C

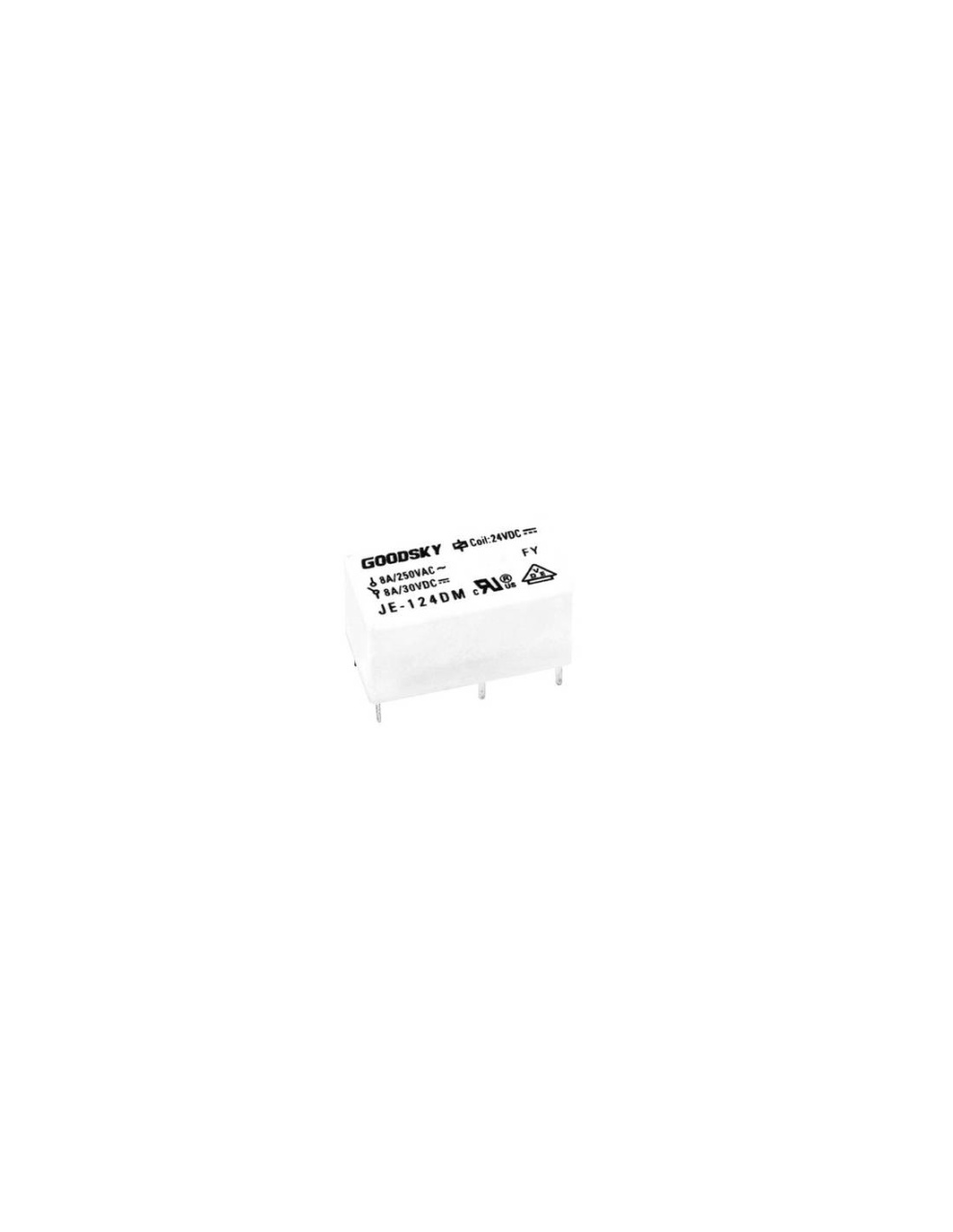

Denumire / cod producator: GoodSky JE-112DM

Detalii

SKU
1076
Categorii
Relee
Tip releu
miniatura
Tip contacte
SPST
Tensiune nominala bobina
12V DC
Tensiune max. comutata
30V DC
Temperatura °C
- 40...85
Sarcina admisibila [DC]
8A / 30V DC
Sarcina admisibila [AC]
8A / 250V AC

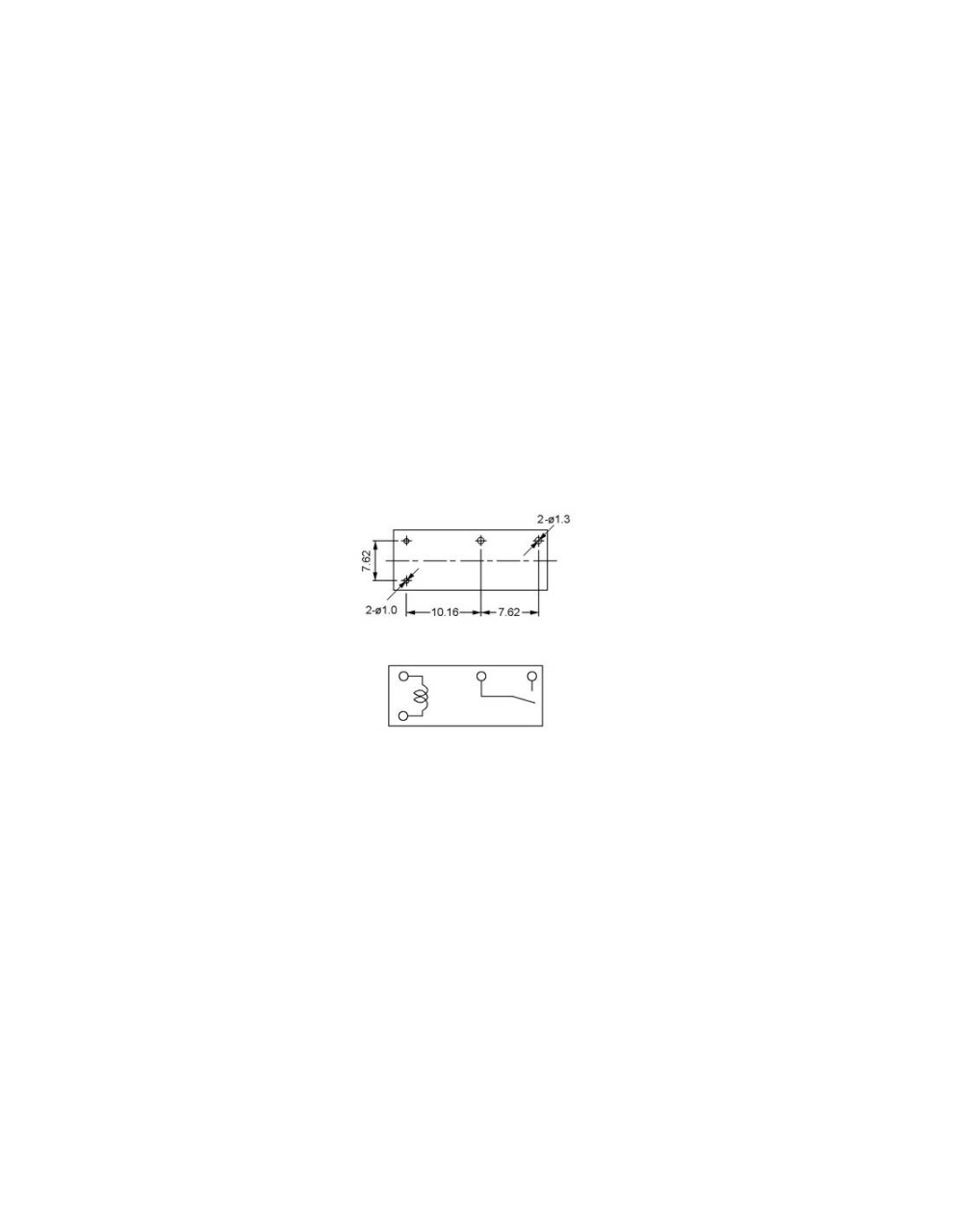

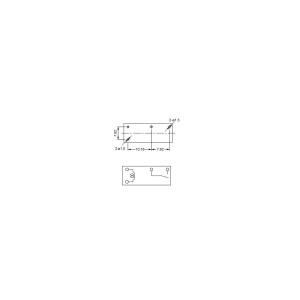

Montare
PCB
Curent max. contacte [A]
8
