RELEU 12 V/8 A 2xU 300 R

Cod produs - SKU 9007
PN: 13797
Stoc epuizat
42,00 LEI
34,71 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Acest produs nu este disponibil momentan. Vrei sa te anuntam cand revine?
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features
• Socket mount or direct connection via Faston connectors
• AC coils & DC coils sensitive (500mW)
• Available with: lockable test button, mechanical indicator
• Relays protection class RTII

Technical Specifications
• Contact: DPDT
• Contact Material: AgNi
• Rated Current: 8A
• Max. Switching Current: 15A
• Max. Switching Voltage: 440V AC
• Max. Switching Power: 2000VA
• Operate/Release Time : 10/3ms
• Testing Voltage
- Coil/Contact: 6000V
- Opening Contact: 1000V
• Lifetime:
- Mechanical: 10 x 106 Cycles
• Electrical: 10 x 104 Cycles
• Operating Temperature: -40...+70°C

Coil Data
• Rated voltage: 12V AC/DC
• Minimum Operating Voltage: 8.8V
• Maximum Operating Voltage: 13.2V
• Rated current: 40mA
• Rated power: 500mW
• Coil resistance: 300W
(All Specifications Measured at 20°C)

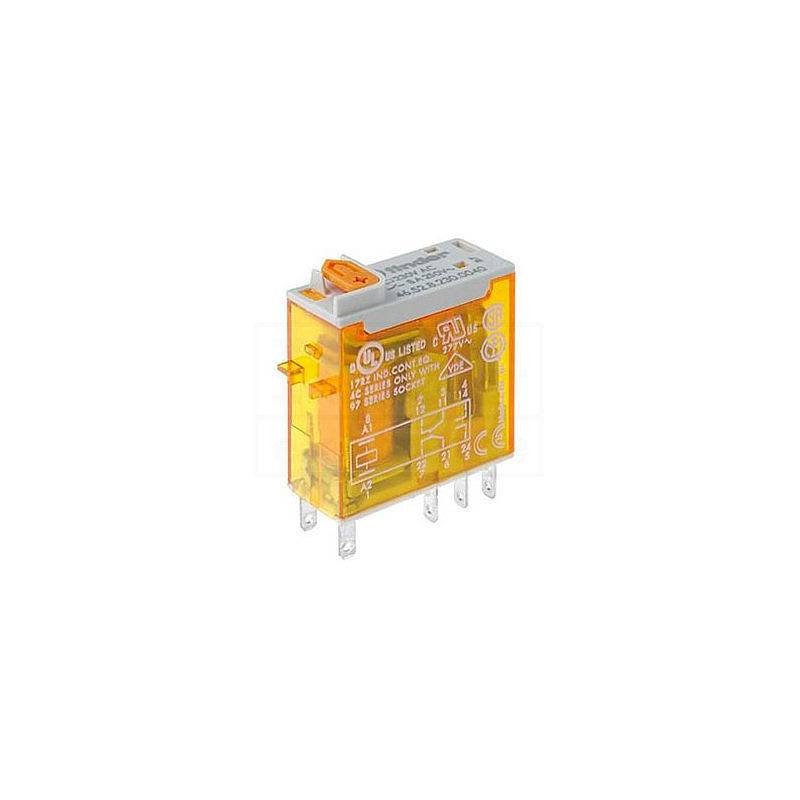

Denumire / cod producator: Finder 46.52.9.012.0040

Detalii

SKU
9007
Categorii
Relee
Tip releu
miniatura
Tip contacte
DPDT
Tensiune nominala bobina
12V DC
Tensiune max. comutata
440V AC
Temperatura °C
- 40...70
Montare
PCB
Curent max. contacte [A]
15
