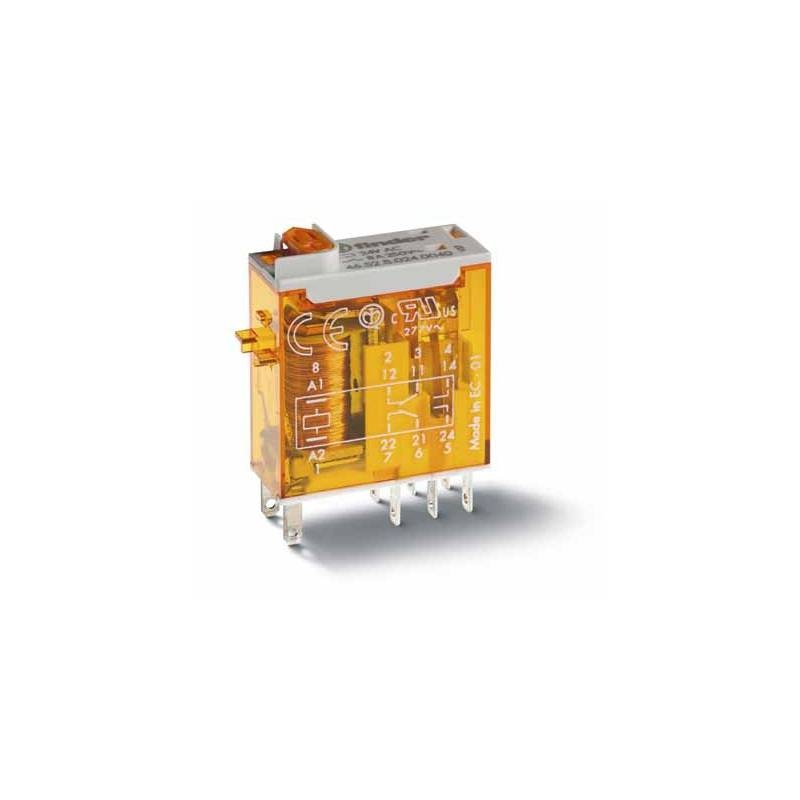

RELEU 230 V/16 A 1xU 28000R

Cod produs - SKU 9026
PN: 13812
Stoc epuizat

Releu Finder; SPDT; Ubobină:230VAC; 16A/250VAC;

63,50 LEI
52,48 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Acest produs nu este disponibil momentan. Vrei sa te anuntam cand revine?
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features
• Socket mount or direct connection via Faston connectors
• Coli voltage: 230V AC
• Available with: lockable test button, mechanical indicator
• Relays protection class RTII

Technical Specifications
• Contact: SPDT
• Contact Material: AgNi
• Rated Current: 16A
• Max. Switching Current: 25A
• Max. Switching Voltage: 440V AC
• Max. Switching Power: 4000VA
• Operate/Release Time: 15/5ms
• Testing Voltage
- Coil/Contact: 6000V
- Opening Contact: 1000V
• Lifetime
- Mechanical: 10x106 Cycles
- Electrical: 10x104 Cycles
• Operating Temperature: -40...+70°C

Coil Data
• Rated Voltage: 230 V AC/DC
• Minimum Operating Voltage: 184 V
• Maximum Operating Voltage: 253 V
• Rated Current: 5mA
• Coil Resistance: 28000 Ohm
*All Specifications Measured at 20°C

NOTA: se conecteaza cu soclu Cod 6606

Denumire / cod producator: Finder 46.61.8.230.0040

Detalii

SKU
9026
Categorii
Relee
Tip releu
miniatura
Tip contacte
SPDT
Tensiune nominala bobina
230V AC
Tensiune max. comutata
440V AC
Temperatura °C
- 40...70
Sarcina admisibila [DC]
16A / 30V DC
Sarcina admisibila [AC]
16A / 250V AC
Montare
PCB sau Soclu
Curent max. contacte [A]
25
Descriere scurta

Releu Finder; SPDT; Ubobină:230VAC; 16A/250VAC;
