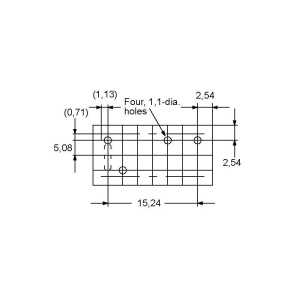

  • RELEU 24 V/5 A 1xA 2880 R - Img 4

RELEU 24 V/5 A 1xA 2880 R

Cod produs - SKU 7105
PN: 12454
Stoc epuizat

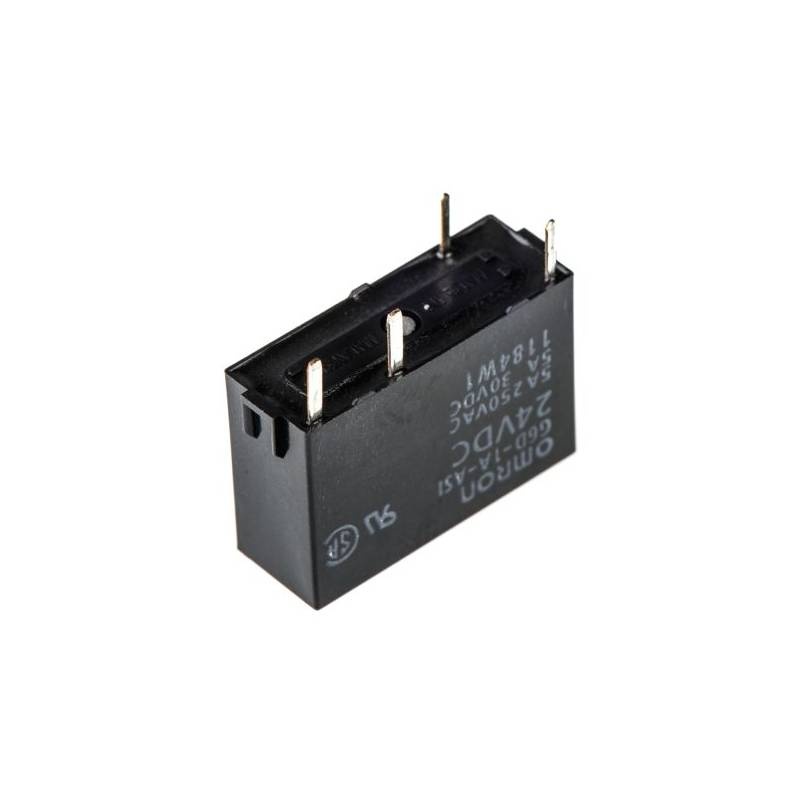

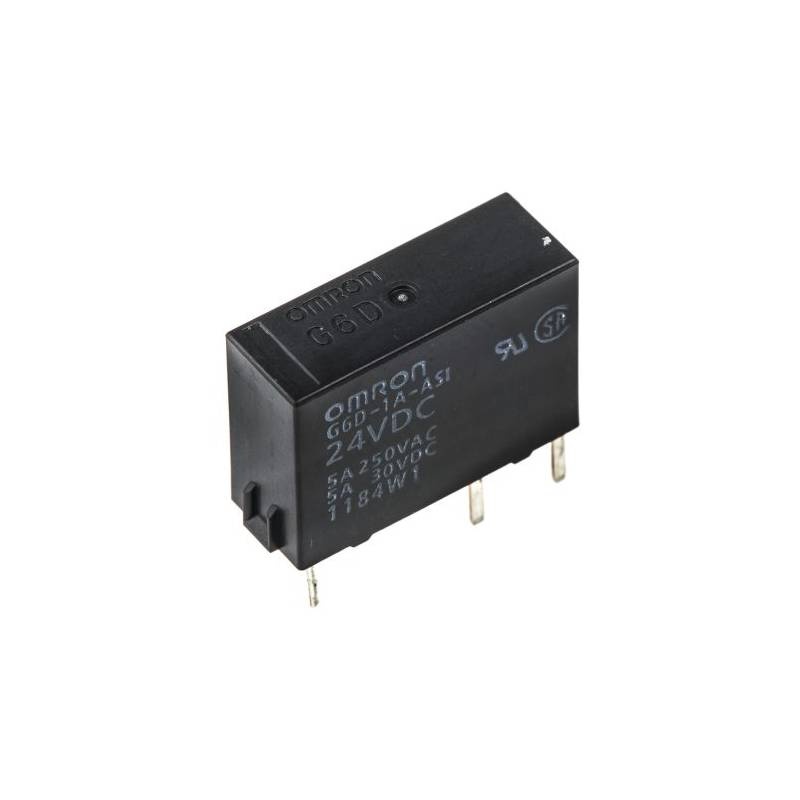

Releu Omron, SPST-NO, Ubobina: 24VDC, 5A/250VAC

12,50 LEI
10,33 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Acest produs nu este disponibil momentan. Vrei sa te anuntam cand revine?
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features
• Compact design with high switching current 5A
• Washable construction

Technical Specifications
• Contact: SPST-NO
• Contact Material: AgSnIn
• Rated Current: 5A
• Max. Switching Current: 5A
• Max. Switching Voltage: 250V AC / 30V DC
• Max. Switching Power: 1250VA / 150W
• Operate/Release Time: 10/5ms
• Testing Voltage
- Coil/Contact: 3000V AC
- Contact/Contact: 750V AC
• Lifetime
- Mechanical: 20 x 1 000 000 Operations
- Electrical: 70 x 1000 Operations
• Operating Temperature: -25...+70°C
• Weight Approx.: 3g
• Rated Voltage: 24V DC
• Maximum Operating Voltage: 31.2V
• Operate Voltage: 16.8V
• Release Voltage: 2.4V
• Rated Current: 8.3mA
• Rated Power: 200mW
• Coil Resistance: 2880Ω
All Specifications Measured at 20°C

Denumire / cod producator: Omron G6D-1A-ASI-24DC

Detalii

SKU
7105
Categorii
Relee
Tip releu
miniatura
Tip contacte
SPST-NO
Tensiune nominala bobina
24V DC
Tensiune max. comutata
250V AC
Temperatura °C
- 25...70 °C
Sarcina admisibila [DC]
5A / 30V DC
Sarcina admisibila [AC]
5A / 250V AC
Montare
PCB
Curent max. contacte [A]
5
Descriere scurta

Releu Omron, SPST-NO, Ubobina: 24VDC, 5A/250VAC
