RELEU 24 V/6 A 1xU 3390 R

Cod produs - SKU 7092
PN: 12440
Stoc epuizat

Releu Fujitsu, SPDT, Ubobina: 24V DC, 6A/250VAC, 6A/24VDC

23,50 LEI
19,42 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Acest produs nu este disponibil momentan. Vrei sa te anuntam cand revine?
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features
• Slim housing: 5mm
• Sensitive Coil : 170mW
• High insulation 4kV, 8mm creepage/ clearance
• Wash tight enclosure IP67

Technical Specifications
• Contact: SPDT
• Contact Material: AgSnO2 Gold Plated
• Rated Current: 6A
• Max. Switching Current: 6A
• Max. Switching Voltage: 250V AC / 24V DC
• Max. Switching Power: 1500VA / 144W
• Creepage/Clearance: 8/8mm
• Operate/Release Time: 8/4ms
• Testing Voltage
- Coil/Contact: 4000V AC
- Opening Contact: 1000V AC
• Lifetime
- Mechanical: 10 x 1 000 000 Operations
- Electrical: 30 x 1000 Operations
• Operating Temperature: -40...+85°C
• Weight Approx.: 5g
• Rated Voltage: 24 V DC
• Operate Voltage: 15.9V DC
• Release Voltage: 1.2V DC
• Rated Power: 170mW
• Coil Resistance: 3390W
All Specifications Measured at 20°C

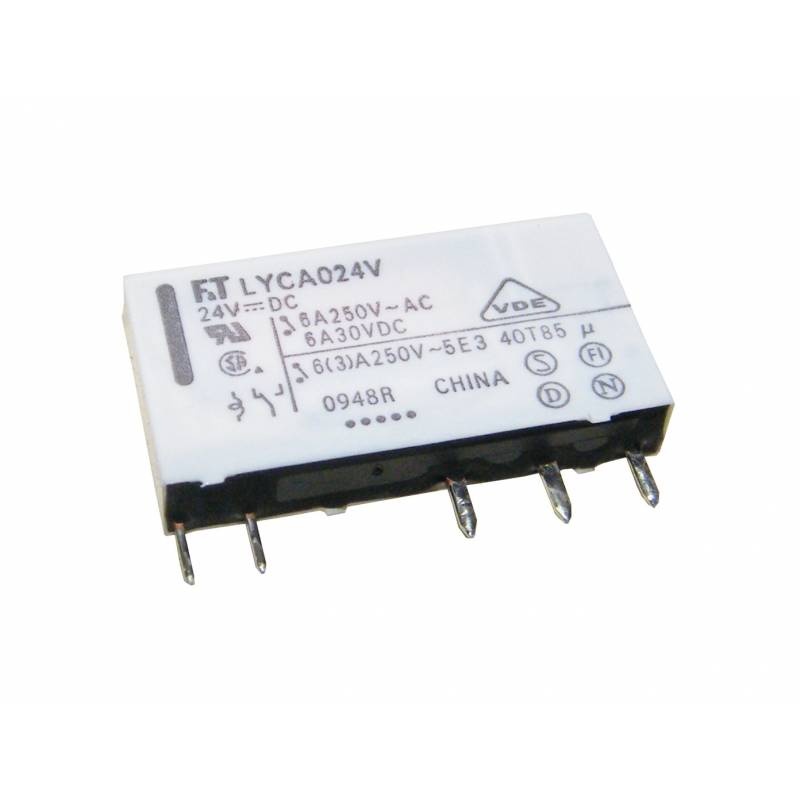

Denumire / cod producator: Fujitsu FTR-LYCA024V

Detalii

SKU
7092
Categorii
Relee
Tip releu
miniatura
Tip contacte
SPDT
Tensiune nominala bobina
24V DC
Tensiune max. comutata
250V AC
Temperatura °C
- 40...85
Sarcina admisibila [DC]
6A / 24V DC
Sarcina admisibila [AC]
6A / 250V AC
Montare
PCB
Curent max. contacte [A]
6
Descriere scurta

Releu Fujitsu, SPDT, Ubobina: 24V DC, 6A/250VAC, 6A/24VDC
