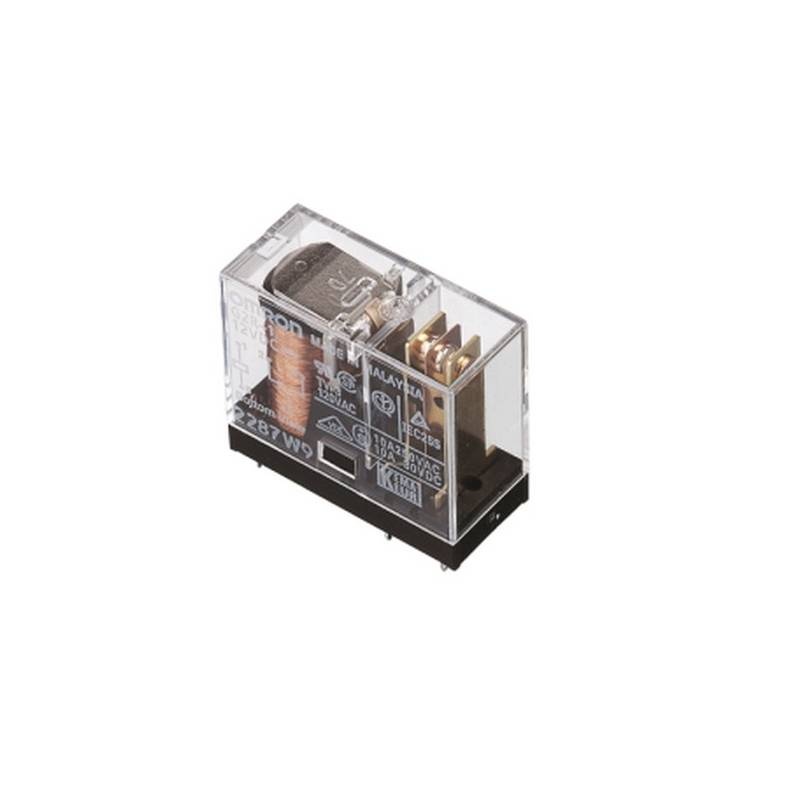

RELEU 24V/10A SPDT OMRON 19X8H1

Cod produs - SKU 18113
PN: G2R1-24A
In stoc

Releu Omron SPDT; Ubobină:24VDC; 10A/250VAC

15,50 LEI
12,81 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 9
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Relay SPDT 10A 24V 1100R

Features
• Flux protection
• Sensitive coil: 530mV

Technical Specifications
• Contact: SPDT (Round Contact)
• Contact Material: AgSnIn
• Rated Current: 10A
• Max. Switching Voltage: 380V AC / 125V DC
• Max. Switching Power: 2500VA
• Creepage/Clearance: 8/8mm
• Operate/Release Time (AC/DC): 15/10(5)ms
• Testing Voltage
– Coil/Contact: 5000V AC
– Contact/Contact: 1000V AC
• Lifetime
– Mechanical (AC/DC): 10x1000000 / 20x1000000 Operations
– Electrical: 10x10000 Operations
• Operating Temperature: -40...+70°C
• Weight Approx.: 17g

• Rated Voltage: 24V DC
• Maximum Operating Voltage (70°C): 40.8V
• Operate Voltage: 16.8V
• UAb: 3.6V
• Rated Current: 21.8mA
• Rated Power: 530mW
• Coil Resistance:1100Ohm
All Specifications Measured at 20°C

Denumire / cod producator: Omron G2R1-24A

Detalii

SKU
18113
Categorii
Relee
Greutate
0.02 kg
Brand
Omron
Tip releu
miniatura
Tip contacte
SPDT
Tensiune nominala bobina
24V DC
Tensiune max. comutata
380V AC
Temperatura °C
- 40...70
Sarcina admisibila [DC]
10A / 30V DC
Sarcina admisibila [AC]
10A / 250V AC
Montare
PCB
Curent max. contacte [A]
10
Descriere scurta

Releu Omron SPDT; Ubobină:24VDC; 10A/250VAC
