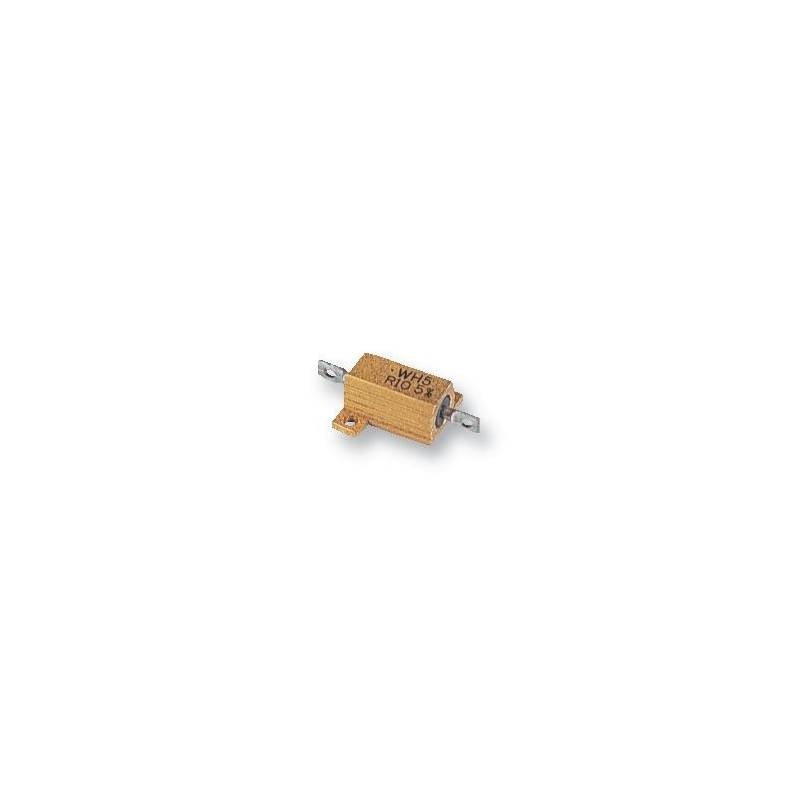

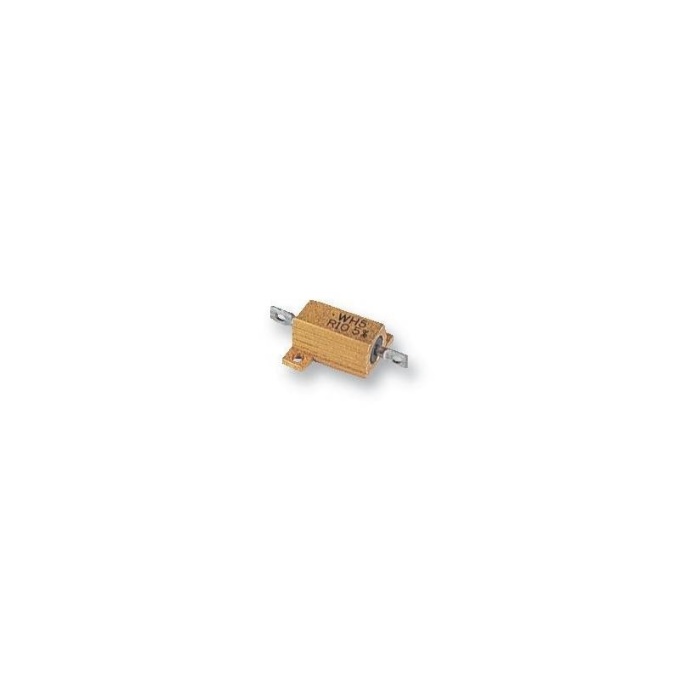

2.7 OHM/10W ALUMINIU
Descriere
• RESISTOR, 10W 5% 2R7
• Resistance: 2.7ohm
• Resistance Tolerance: ± 5%
• Power Rating: 10W
• Voltage Rating: 160V
• Temperature Coefficient: ± 50ppm/°C
• Resistor Element Material: Wirewound
• Resistor Terminals: Axial Leaded
• Resistor Mounting: Through Hole
• SVHC: No SVHC (18-Jun-2012)
• External Depth: 9mm
• External Length / Height: 17mm
• External Width: 8.9mm
• Fixing Centres LxW: 12.5x11.3
• Full Power Rating Temperature: 20°C
• Insulation Resistance: 10000mohm
• No. of Pins: 2
• Operating Temperature Max: 275°C
• Operating Temperature Min: -55°C
• Operating Temperature Range: -55°C to +275°C
• Package / Case: Axial
• Series: WH5
• Temperature Coeff. +: 50ppm/°C
• Temperature Coeff. -: 50ppm/°C
• Temperature Rise: 22.2°C
• Tolerance +: 5%
• Tolerance -: 5%
• Voltage Rating V AC: 160V
Detalii
