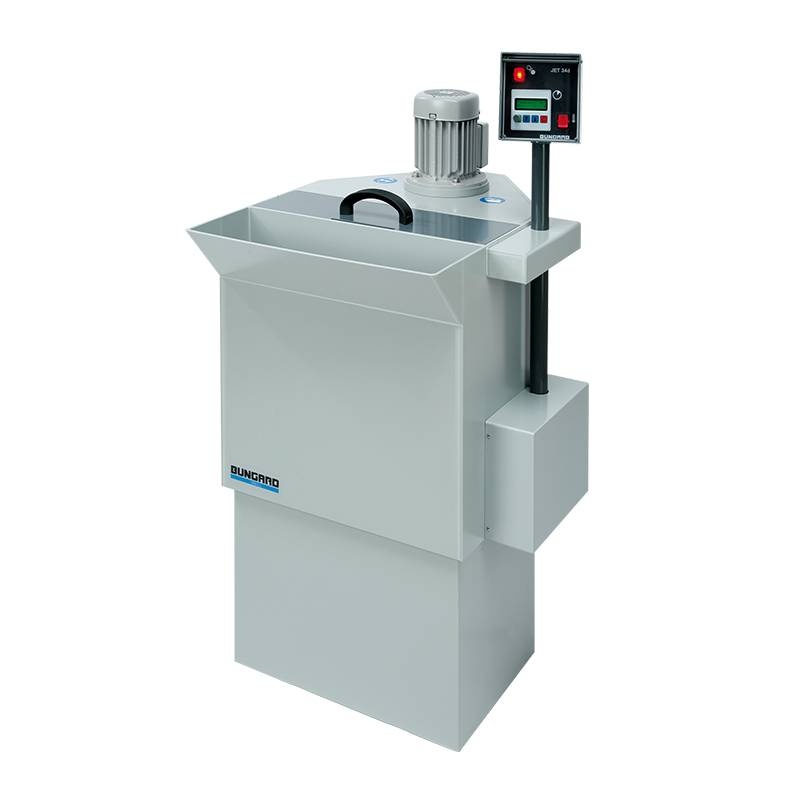

BUNGARD JET 34 D

Descriere

Powerful spray etching or spray developing machine mainly designed for use in PCB labs. Low budget.

• Maintenance free system with self-cleaning nozzles
• Etching speed of 35µm Cu within 65 seconds (warm Fe-3-Cl)
• Line resolution better than 0.1 mm
• Strong 1000 W heater with thermostat and over-heat fuse
• Big lid for easy loading, with built-in security switch
• Maximum board size: 300 x 400 mm
• Carrier for fixation of small PCBs with handle outside of machine
• Easy and clean handling without etchant contact
• Over flow wash tank in the front for rinsing etched boards
• 3 cog valves (etching tank, rinse overflow, rinse inlet)
• Digital timer (0-99 minutes) with count-down, auto reset and beeper
• Sturdy construction fully made of PVC and titanium
• Equipped with 1000W quartz heater, thermostate and over-heat protection
• Suitable for all common etchants
• Also well suited for spray developing of dry film resist

• Dimensions W x H x D): 600 mm x 1100 mm x 850 mm
• Working level: 900 mm
• Power supply: 230 V~, 50 Hz, 1500 VA
• Tank capacity: 16 l
• Weight: 35 kg
