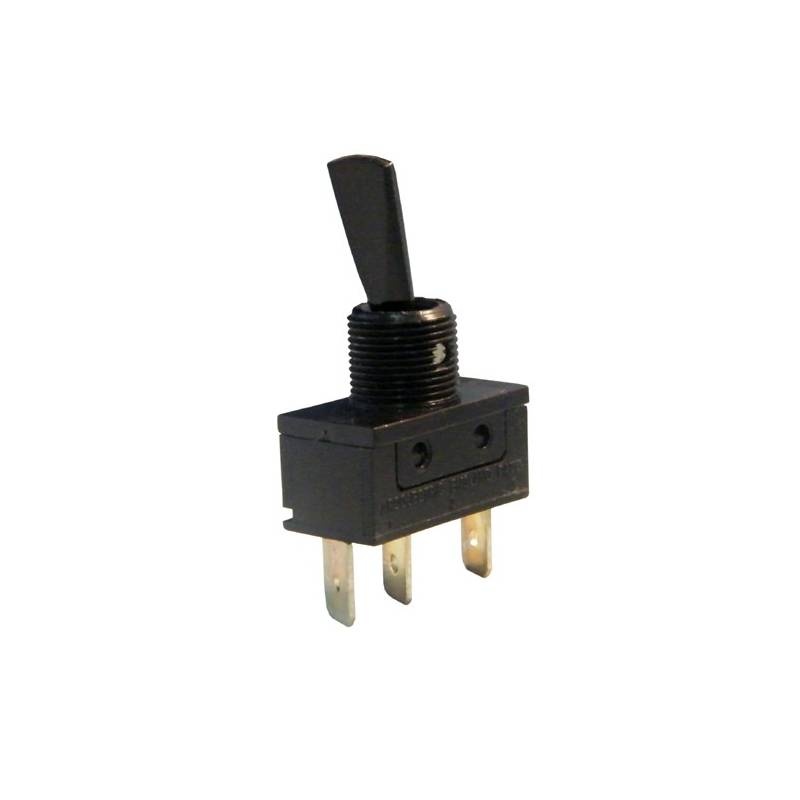

COMUTATOR 1 X 2P C1710HOSW

Cod produs - SKU 1451
PN: 3503
In stoc
49,90 LEI
41,24 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Ce spun clientii

Descriere

Features
• For central mounting
• Black plastic rocker arm
• Approved up to 250V/16A
Selection Table
• Nr. of Poles: 1-Pole
• Function: 1 x On/On

Technical Specifications
• Operating Voltage, Max.: 250V AC
• Switching Current, Max.: 16A
• Switching Current at Inductive Load, Max.: 4A
• Inrush Current (EN61058-1): 36A
• Ambient Temperature, Max.: 85°C
• Insulation Resistance: >20M
Contact Resistance
(New State, 12V DC/1A): 100m
• Contact Opening Width: 3mm
• Soldering Conditions (Hand Solder): 350°C/6s
Material
• Shell and Lever: Nylon 6.6
• Current-carrying Part: Cu Alloy
• Contacts: Silver-plated
• Flammability Class: UL94V2

Panel Cut-out
• Wall Strength: 3,5mm (with 2 Nuts)
• Cut-out: Ø 12.7mm
• Wall Strength: 6,5mm (with 1 Nut)
• Cut-out: Ø 12.7mm

Detalii

SKU
1451
Categorii
Comutatoare basculante
Greutate
0.01 kg
Tip comutator
Basculant
Terminale
6,3x0,8mm
Sarcina admisibila [AC]
16A / 250V AC
Numar pozitii
2
Mod comutare
ON-ON
Diametru orificiu panou
Ø 12,7mm
Configuratie pini
SPDT
