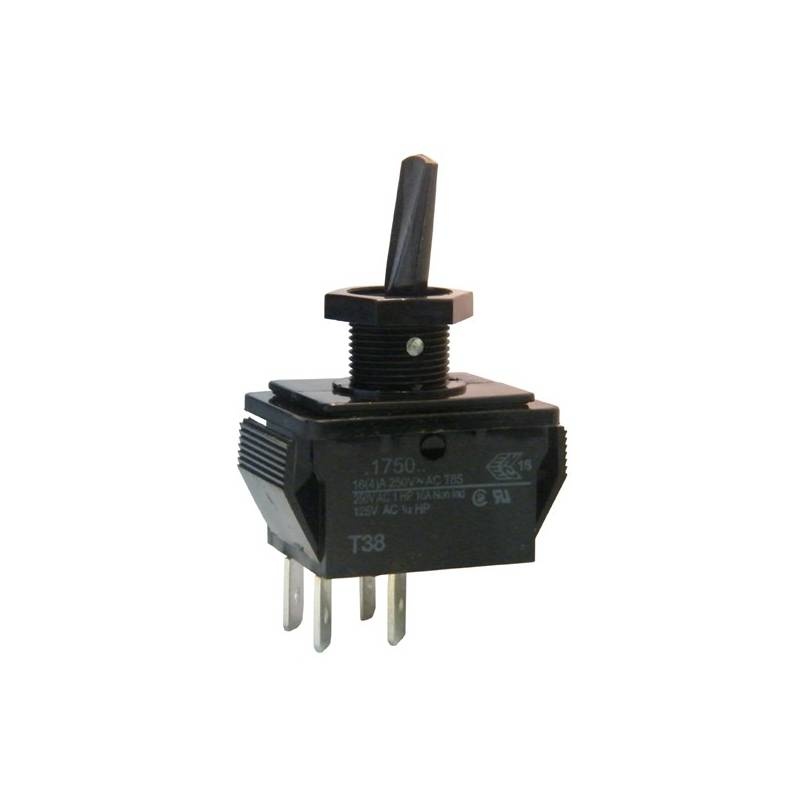

COMUTATOR 2 X 2P 250V AC/16A BULGIN C1750HOSW

Cod produs - SKU 1454
PN: C1750HOAAAV
In stoc
35,90 LEI
29,67 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Ce spun clientii

Descriere

Selection Table
• Nr. of Poles: 2-Pole
• Function: 2 x On/Off

Technical Specifications
• Operating Voltage, Max.: 250V AC
• Switching Current, Max.: 16A
• Switching Current at Inductive Load, Max.: 4A
• Inrush Current (EN61058-1): 36A
• Ambient Temperature, Max.: 85°C
• Insulation Resistance: >20M
Contact Resistance
(New State, 12V DC/1A): 100m
• Contact Opening Width: 3mm
• Soldering Conditions (Hand Solder): 350°C/6s
Material
• Shell and Lever: Nylon 6.6
• Current-carrying Part: Cu Alloy
• Contacts: Silver-plated
• Flammability Class: UL94V2

Panel Cut-out
• Wall Strength: 3,5mm (with 2 Nuts)
• Cut-out: Ø 12,7
• Wall Strength: 6,5 (with 1 Nut)
• Cut-out: Ø 12,7

Detalii

SKU
1454
Categorii
Comutatoare basculante
Greutate
0.01 kg
Brand
BULGIN
Tip comutator
Basculant
Terminale
6,3x0,8mm
Sarcina admisibila [AC]
16A / 250V AC
Numar pozitii
2
Mod comutare
2xON/OFF
Diametru orificiu panou
Ø 12,7mm

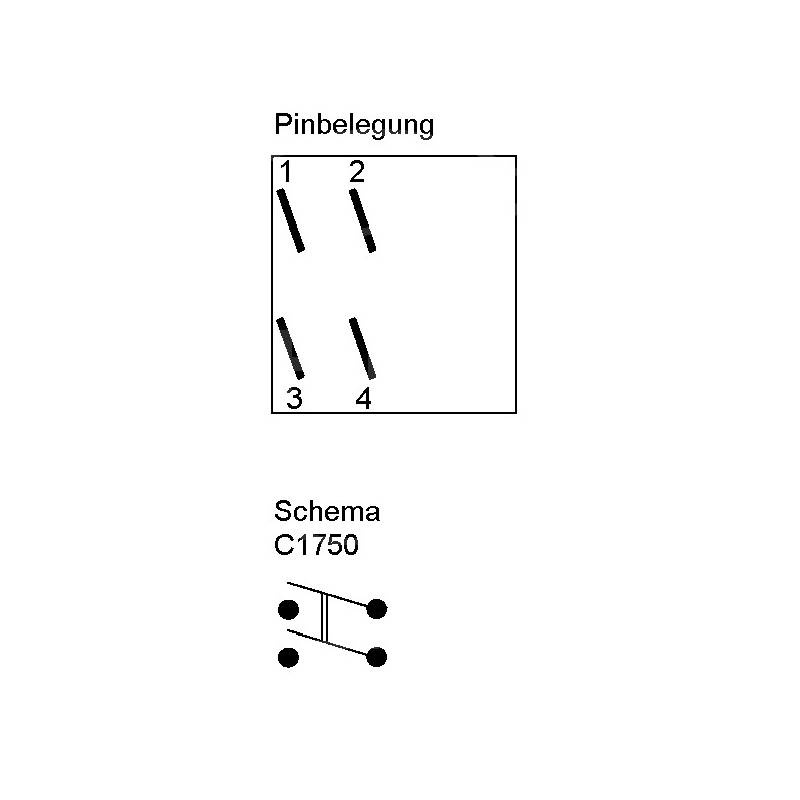

Configuratie pini
DPST
