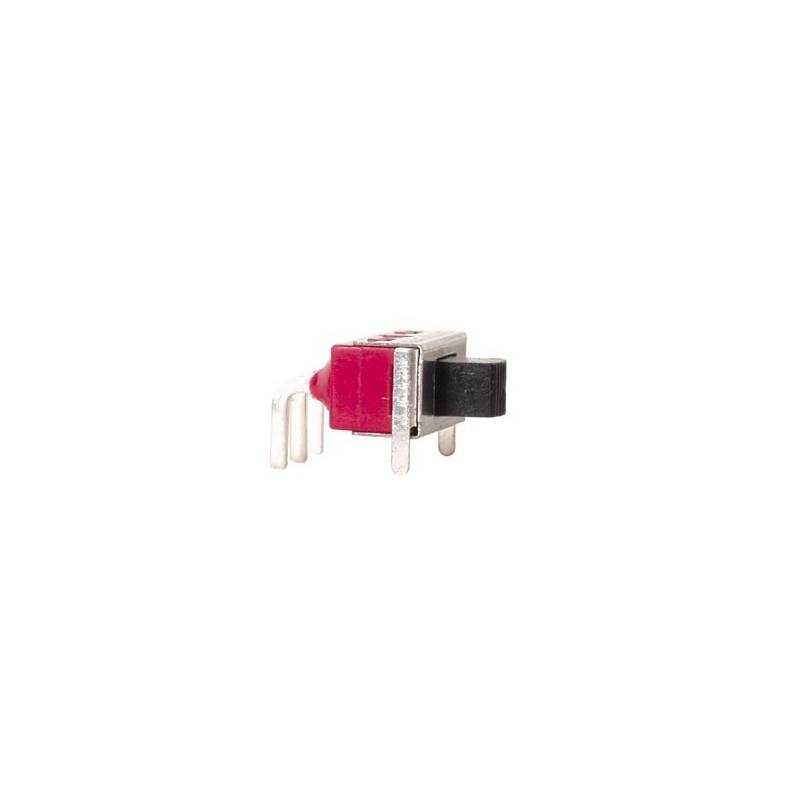

COMUTATOR 1 X 2P TS-13P

Descriere

Specifications
• switching position:
• left: on
(TERM. COMM. : 2-1)
• middle: none
• right: on
(TERM. COMM. : 2-3)
• contact rating:
– 6A with resistive load of 120Vac or 28Vdc
– 2A with resistive load of 250Vac
• electrical life: 30000 actuations at full load
• contact resistance: initially max. 10mohm
• insulation resistance: min. 1000Mohm
• dielectric strength: 1000Vrms at sea level
• operating temperature: -30°C to +85°C
• materials:
– case: diallyl phthalate (DAP)
– slide handle: nylon
– housing: stainless steel
– contacts: coin silver, silver-plated
– centre contacts and terminals: brass, silver-plated
