CONTACTOR LP1-D1210 12A 24V CC

Descriere

The contactors LP1 D are alternating current contac-tors with constant current coil for control. The power plugs of the contactor are designed for control of alternating current circuits and consumers operat-ing in normal operating class AC-3 with frequently switching on/off the consumer and dirty working en-vironment. The contactors are suitable for consumers with electrical power consumption from 9A to 225A.

Functions:
• switching on/off alternating current consumers in direct current controlling schemes at controlling signal to the coil
• making of systems for consumers’ control
• used as an operating element in process control panels
• remarkable with high reliability of current charac-teristics
• reliable separation of power contacts
• secured cover of the movable part of the contactor

• rated current: 12A
• auxiliary contact: 1NO
• rated capacity of the consumer:
- 230V: 3.00 kW
- 400V: 5.50 kW
- 415V: 5.50 kW
- 440V: 5.50 kW
- 690V: 7.50 kW

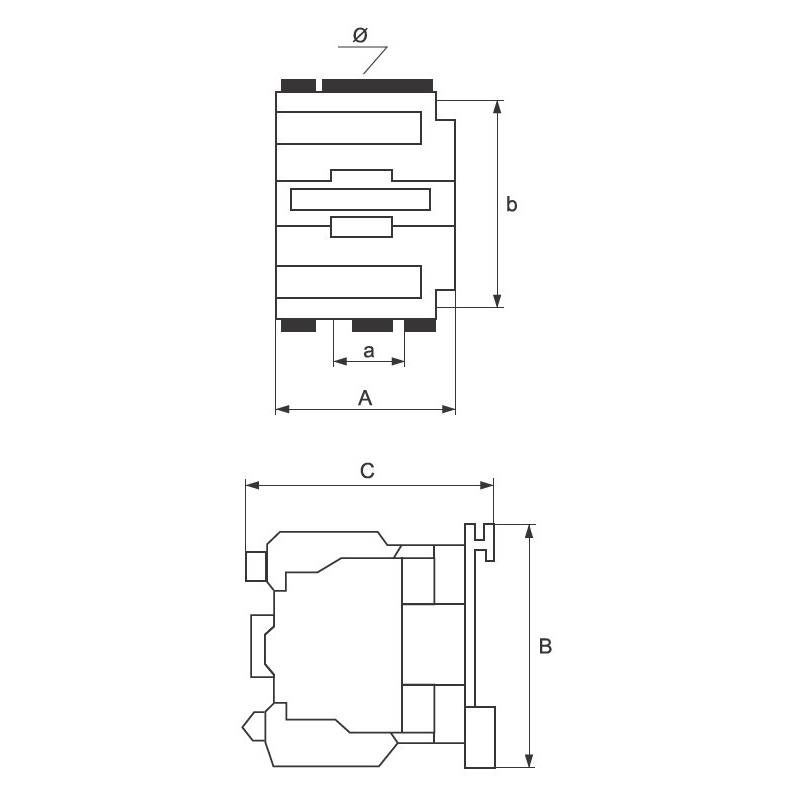

Dimensions (mm):
- A: 47
- B: 76
- C: 95
- a: 34/35
- b: 50/60
