Q 32768 KHz 3x8 mm 10 ppm

Name: Q 32768 KHz 3x8 mm 10 ppm
SKU: 5414
Price: 2.5 RON
Availability: InStock

Cod produs - SKU 5414

PN: 11137

In stoc

2^,50 LEI

2^,07 LEI (fara TVA)

Costurile de livrare nu sunt incluse

Stoc 8

Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).

Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).

Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.

Descriere

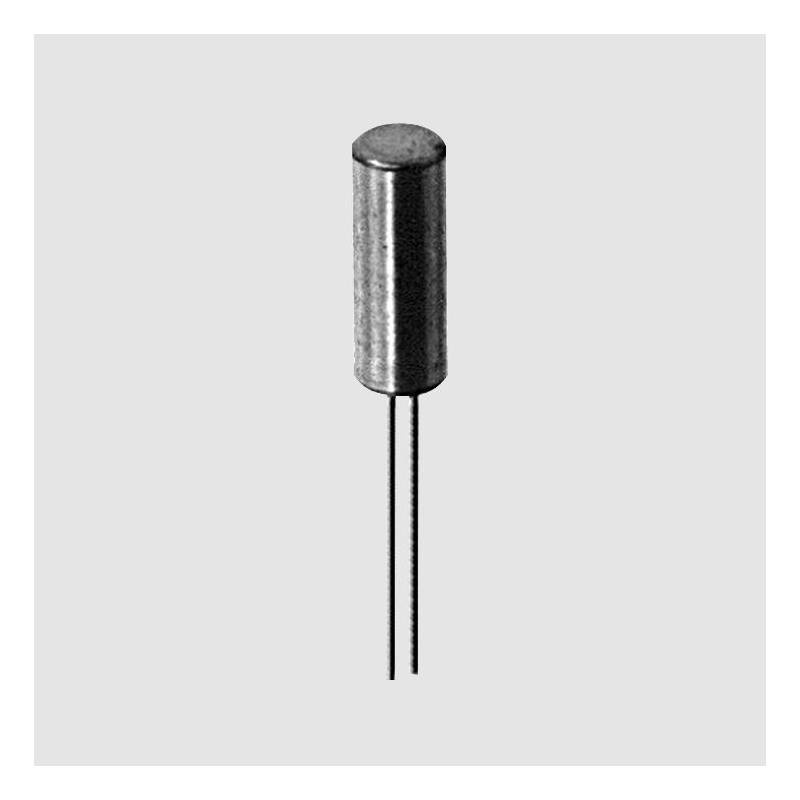

Clock Crystal 32,768kHz 3x8mm 10ppm

Technical Specifications
• Frequency: 32.768kHz
• Frequency Tolerance (TU = 25°C) : ±10ppm
• Temperature Coefficient, Max.: -0,04ppm/°C2
• Operating Temperature: -10...+60°C
• Storage Temperature: -20...+70°C
• Insulation Resistance, Min.: 500MOhm
• Drive Level, Max.: 1,0µW
• Aging (TU = +25°C), Max.: ±3ppm/Year
• Heat Resistance Soldering: 280°C, 5s
• Soldering Condition, Max.: ±5ppm
• Shunt Capacitance, Max. : 0.9pF
• Load Capacitance: 10pF
• Series Resistance, Max.: 35kOhm

Dimensions (mm):
• L1max.: 8.0
• L2: 9.0 (min.)
• D1max.: Ø 3.0
• D2: Ø 0.3
• B: 1.1
