RELEU 12 V/10 A SPDT 275 R OMRON

Cod produs - SKU 18112
PN: G2R1-12A
In stoc
12,50 LEI
10,33 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 18
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

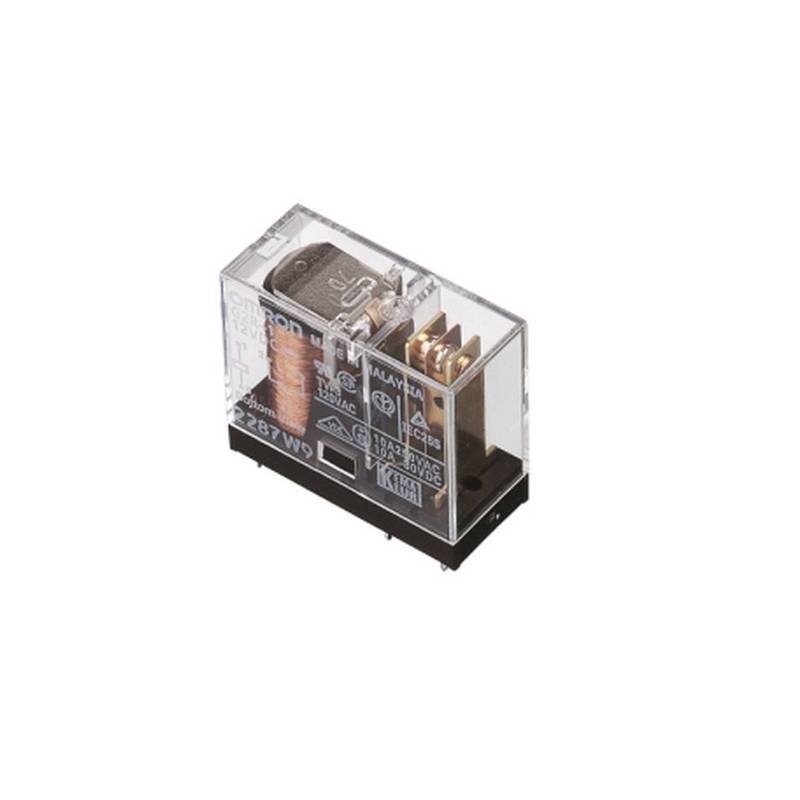

Relay SPDT 10A 12V 275R

Features
• Flux protection
• Sensitive coil: 530mV

Technical Specifications
• Contact: SPDT (Round Contact)
• Contact Material: AgSnIn
• Rated Current: 10A
• Max. Switching Voltage: 380V AC / 125V DC
• Max. Switching Power: 2500VA
• Creepage/Clearance: 8/8mm
• Operate/Release Time (AC/DC): 15/10(5)ms
• Testing Voltage
– Coil/Contact: 5000V AC
– Contact/Contact: 1000V AC
• Lifetime
– Mechanical (AC/DC): 10x1000000 / 20x1000000 Operations
– Electrical: 10x10000 Operations
• Operating Temperature: -40...+70°C
• Weight Approx.: 17g

• Rated Voltage: 12V DC
• Maximum Operating Voltage (70°C): 20.4V
• Operate Voltage: 8.4V
• UAb: 1.8V
• Rated Current: 43.6mA
• Rated Power: 530mW
• Coil Resistance: 275Ohm
All Specifications Measured at 20°C

Denumire / cod producator: Omron G2R-1-12DC

Detalii

SKU
18112
Categorii
Relee
Greutate
0.02 kg
Tip releu
miniatura
Tip contacte
SPDT
Tensiune nominala bobina
12V DC
Tensiune max. comutata
380V AC
Temperatura °C
- 40...70
Sarcina admisibila [DC]
10A / 30V DC
Sarcina admisibila [AC]
10A / 250V AC
Montare
PCB sau Soclu
Curent max. contacte [A]
10
