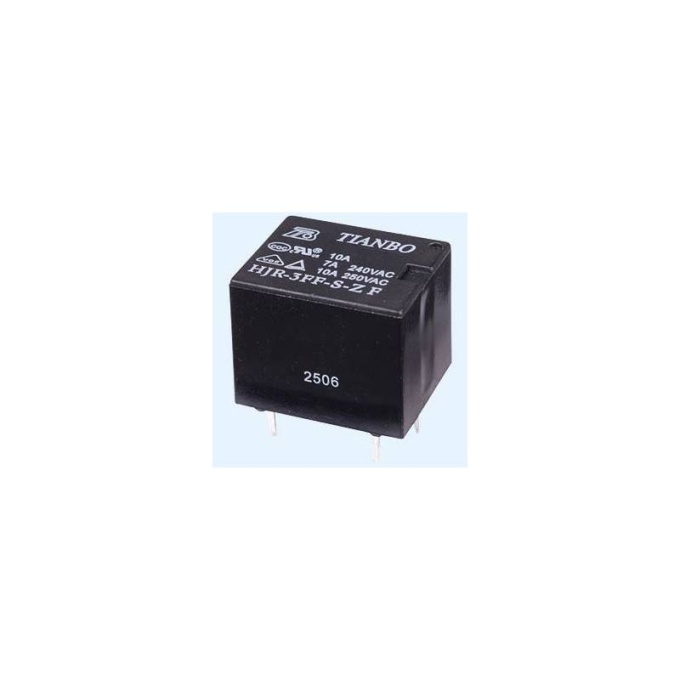

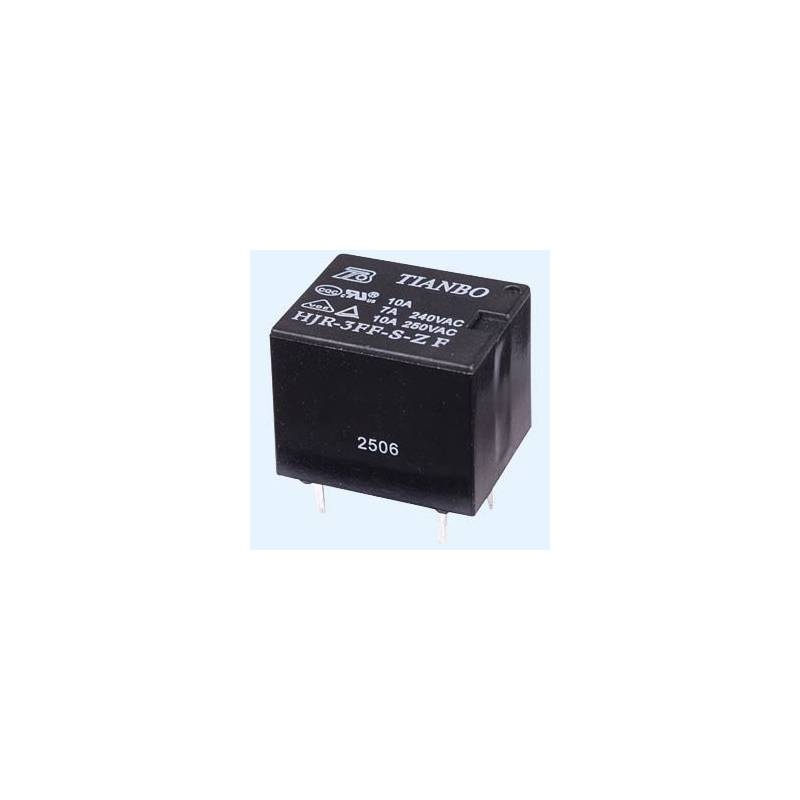

RELEU 6 V/10 A SPDT 100R

Cod produs - SKU 10601
PN: 1545
In stoc

Releu SPDT, Ubobina: 6V DC, 10A/60V DC, 10A/250V AC

6,50 LEI
5,37 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Relay SPDT 6V 100R
Features
• Wash tight enclosure
• Coil 270mW
• Relays protection class RTIII (IP67)

Technical Specifications
• Contact: SPDT
• Contact Material: AgSnO2
• Rated Current: 10A
• Max. Switching Current: 15A
• Max. Switching Voltage: 250V AC / 60V DC
• Max. Switching Power: 240W / 2770VA
• Operate/Release Time: 10/5ms
• Testing Voltage
- Coil/Contact: 1500V AC
- Contact/Contact: 750V AC
• Lifetime
- Mechanical: 1 x 10 000 000 Operations
- Electrical: 1 x 100 000 Operations
• Operating Temperature: -40...+85°C
• Weight Approx.: 10g
• Rated Voltage: 6V DC
• Minimum Operating Voltage: 4.5V
• Maximum Operating Voltage: 7.8V
• Release Voltage: >=0.6V
• Rated Power: 360mW
• Coil Resistance: 100 Ohm
Rated Value ±10%
All Specifications Measured at 20°C

Denumire / cod producator: Tianbo HJR-3FF-06VDCSZ

Detalii

SKU
10601
Categorii
Relee
Greutate
0.01 kg
Tip releu
miniatura
Tip contacte
SPDT
Tensiune nominala bobina
6V DC
Tensiune max. comutata
250V AC
Temperatura °C
- 40...85
Sarcina admisibila [DC]
10A / 60V DC
Sarcina admisibila [AC]
10A / 250V AC
Montare
PCB
Curent max. contacte [A]
15
Descriere scurta

Releu SPDT, Ubobina: 6V DC, 10A/60V DC, 10A/250V AC
