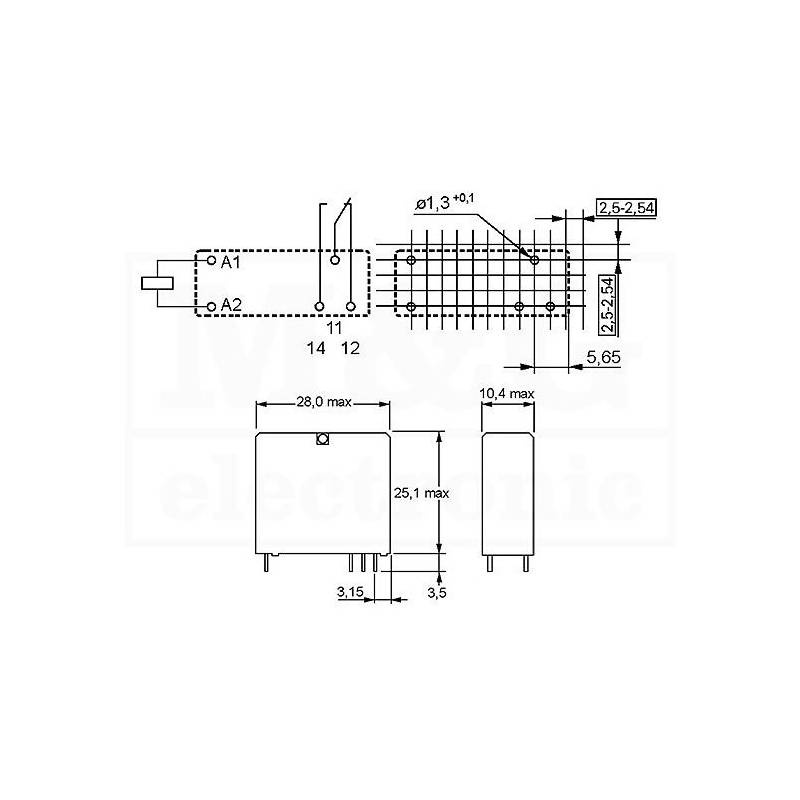

• RELEU 24 V/8 A SPDT 1200 R VERTICAL - Img 1

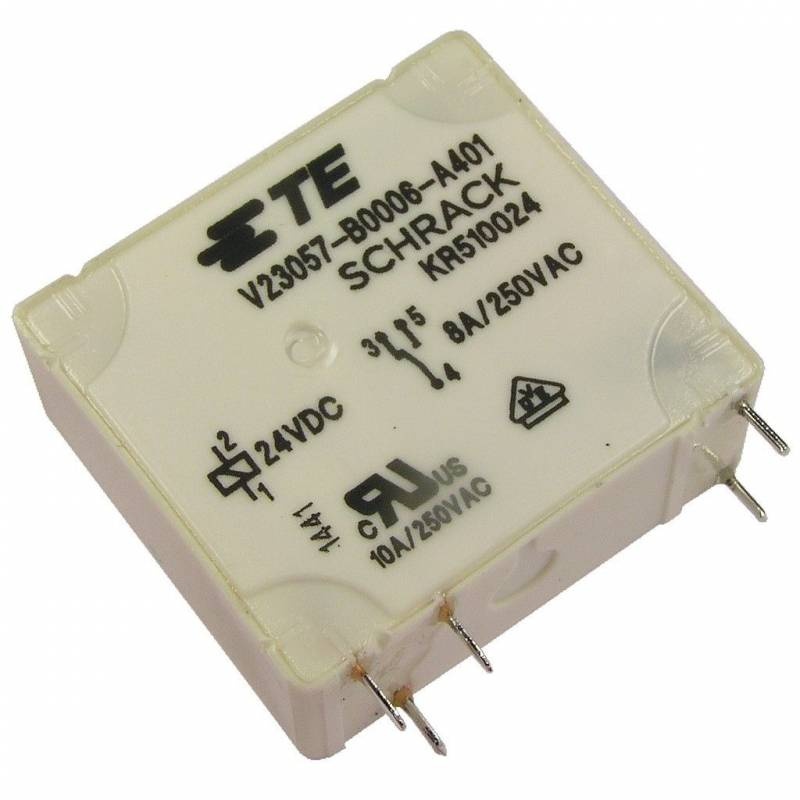

  • RELEU 24 V/8 A SPDT 1200 R VERTICAL - Img 2

RELEU 24 V/8 A SPDT 1200 R VERTICAL

Cod produs - SKU 18115
PN: 5215
In stoc

Releu SPDT; Ubobina: 24VDC, 8A/250VAC, 8A/24VDC

19,90 LEI
16,45 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Relay SPDT 8A 24V 1200R Vertical

Features
• KRE_S: vertical version
• 4kV coil/contact
• Version with bifurcated contacts
• Wash tight RTIII

Technical Specifications
• Contact: SPDT (Single Contact)
• Contact Material: AgCdO
• Rated Current: 8A
• Max. Switching Current: 15A
• Max. Switching Voltage: 400V AC
• Max. Switching Power: 2000VA
• Creepage/Clearance: >=4/4mm
• Operate/Release Time: 7/3ms
• Testing Voltage
– Coil/Contact: 4000Vrms
– Opening Contact: 1000Vrms
• Lifetime
– Mechanical: 20x1000000 Operations
– Operating Temperature: -40...+70°C
• Weight Approx.: 14g

• Rated Voltage: 24V DC
• Operate Voltage: 16V
• Release Voltage: 2.4V
• Rated Power: 480mW
• Coil Resistance: 1200Ohm
All Specifications Measured at 23°C

Denumire / cod producator: TE Connectivity 8-1393215-5

Detalii

SKU
18115
Categorii
Relee
Greutate
0.01 kg
Tip releu
miniatura
Tip contacte
SPDT
Tensiune nominala bobina
24V DC
Tensiune max. comutata
400V AC
Temperatura °C
- 40...70
Sarcina admisibila [DC]
8A / 24V DC
Sarcina admisibila [AC]
8A / 250V AC
Montare
PCB
Curent max. contacte [A]
15
Descriere scurta

Releu SPDT; Ubobina: 24VDC, 8A/250VAC, 8A/24VDC
