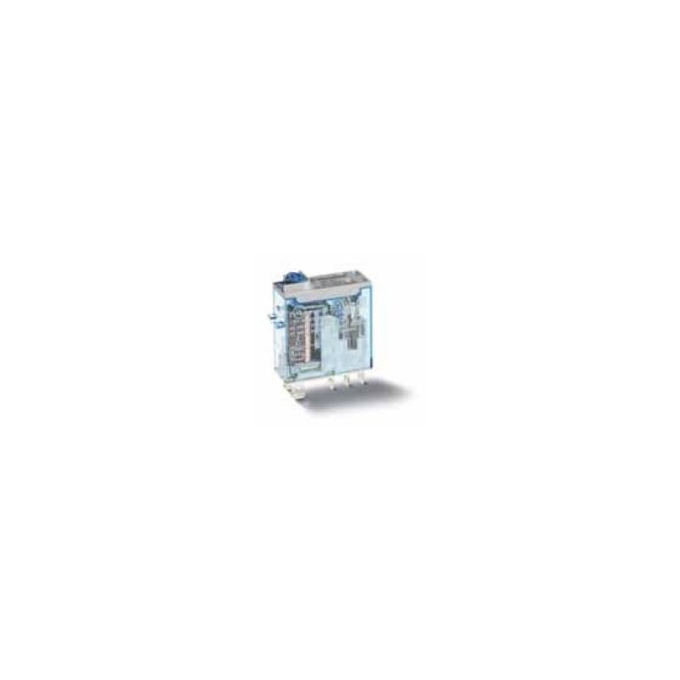

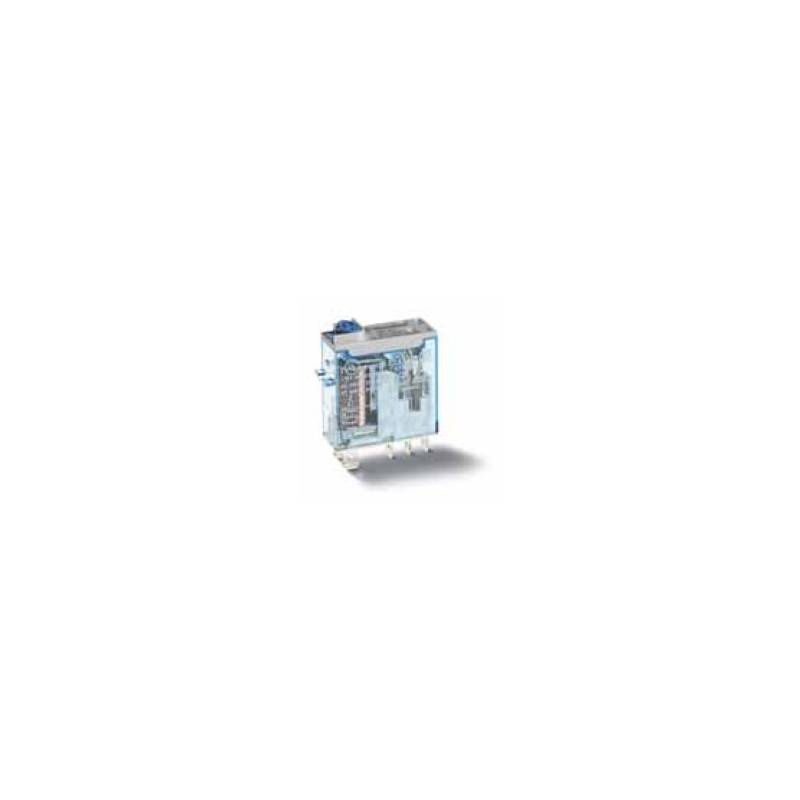

RELEU 12 V/16 A 1xU 300R

Cod produs - SKU 9021
PN: 13808
In stoc
39,00 LEI
32,23 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features
• Socket mount or direct connection via Faston connectors
• AC coils & DC coils sensitive (500mW)
• Available with: lockable test button, mechanical indicator
• Relays protection class RTII

Technical Specifications
• Contact: SPDT
• Contact Material: AgNi
• Rated Current: 16A
• Max. Switching Current: 25A
• Max. Switching Voltage: 440V AC
• Max. Switching Power: 4000VA
• Operate/Release Time: 15/5ms
• Testing Voltage
- Coil/Contact: 6000V
- Opening Contact: 1000V
• Lifetime
- Mechanical: 10x106 Cycles
- Electrical: 10x104 Cycles
• Operating Temperature: -40...+70°C

Coil Data
• Rated Voltage: 12V AC/DC
• Minimum Operating Voltage: 8,8V
• Maximum Operating Voltage: 13,2V
• Rated Current: 40mA
• Rated Power: 500mW
• Coil Resistance: 300 Ohm

*All Specifications Measured at 20°C

Denumire / cod producator: Finder 46.61.9.012.0040

Detalii

SKU
9021
Categorii
Relee
Brand
FINDER
Tip releu
miniatura
Tip contacte
SPDT
Tensiune nominala bobina
12V DC
Tensiune max. comutata
440V AC
Temperatura °C
- 40...70
Sarcina admisibila [DC]
16A / 30V DC
Sarcina admisibila [AC]
16A / 250V AC
Montare
PCB
Curent max. contacte [A]
16
