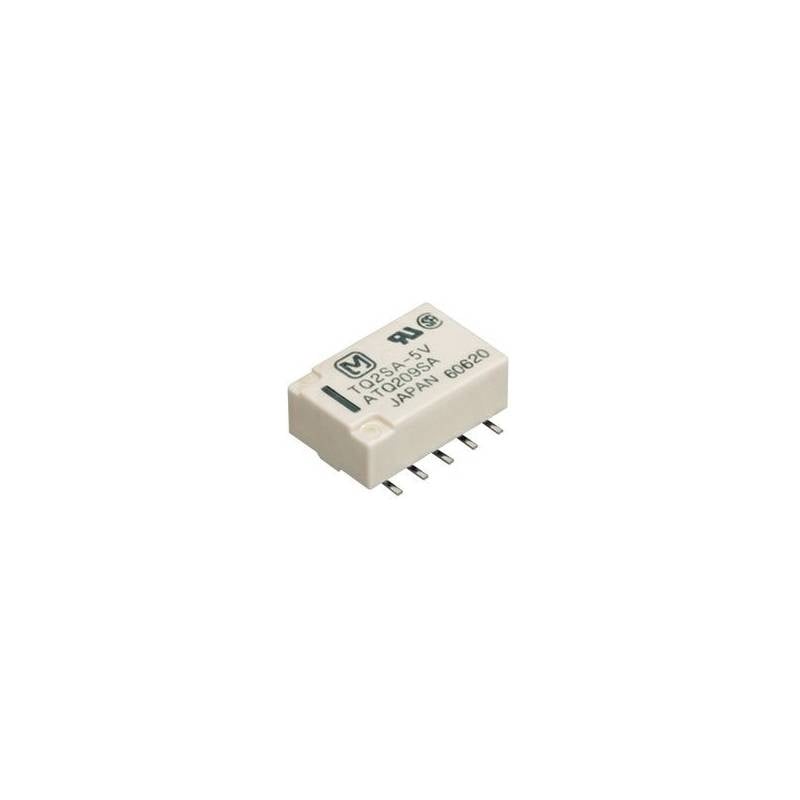

• RELEU 12 V/2 A 2xU 1028R SMD - Img 1

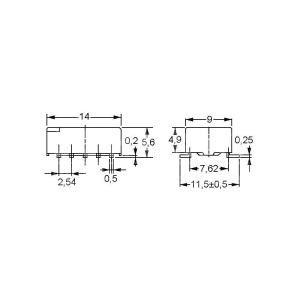

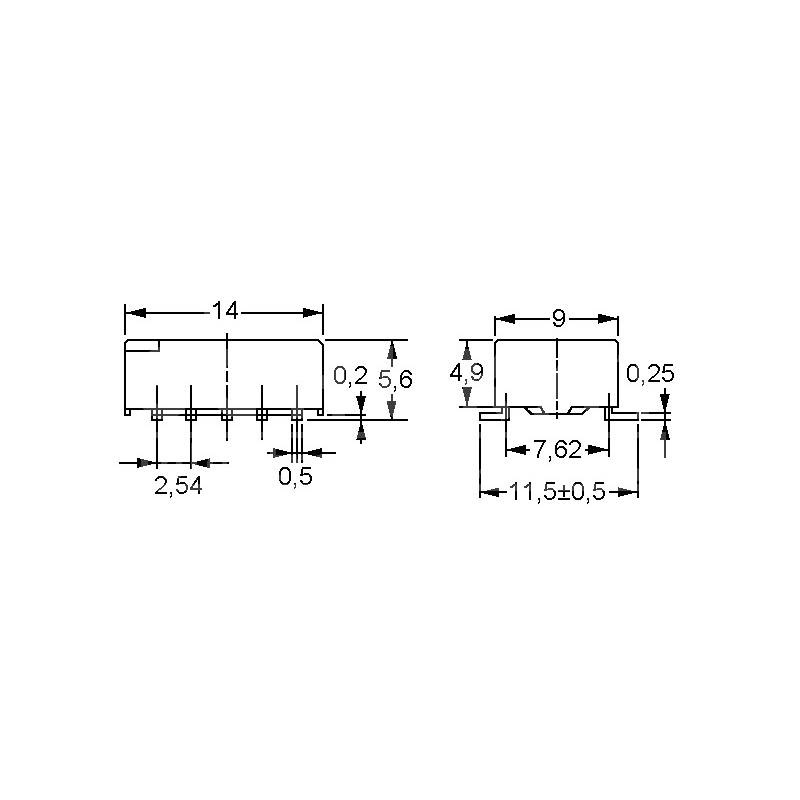

  • RELEU 12 V/2 A 2xU 1028R SMD - Img 2

RELEU 12 V/2 A 2xU 1028R SMD

Cod produs - SKU 25408
PN: TQ2SA-12V
In stoc
18,50 LEI
15,29 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 10
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

SMD Relay DPDT 2A 12V 1028R

Features
• Very small dimensions and weight
• TQ2SA_: SMD, Low Profile
• High sensitivity: 140mW
• Surge withstand between contact and coil: 2500V
• Breakdown voltage between coil and contacts 1,500 V
• High contact reliability through the use of gold-clad twin crossbar contacts

Technical Specifications
• Contact: DPDT
• Contact Material: Ag + Au clad
• Max. Switching Current: 2A
• Max. Switching Voltage: 220V DC/125V AC
• Max. Switching Power: 62,5VA/60W
• Min. Insulation Resistance.: 1.000MOhm
• Operate/Release Time: 4/4ms
Testing Voltage TQ2SA_
• Coil/Contact (1 min.): 1.500V AC
• Contact/Contact (1 min.): 1000V AC
Min. Lifetime
• Mechanical: 100x10^6 Operations
• Electrical 1): 2x10^5 Operations
• Operating Temperature: -40...+85°C
• Weight Approx.: 2g

Coil Data
• Rated Voltage: 12V DC
• Operate Voltage: 9V
• Release Voltage: 1.2V
• Rated Current: 11.7mA
• Rated Power: 140mW
• Coil Resistance: 1.028Ohm
All Specifications Measured at 20°C

Denumire / cod producator: Panasonic TQ2SA-12V

Detalii

SKU
25408
Categorii
Relee
Tip releu
miniatura
Tip contacte
DPDT
Tensiune nominala bobina
12V DC
Tensiune max. comutata
220V DC
Temperatura °C
- 40...85
Sarcina admisibila [DC]
1A /30V DC
Sarcina admisibila [AC]
0,5A / 125V AC
Montare
SMD
Curent max. contacte [A]
2
