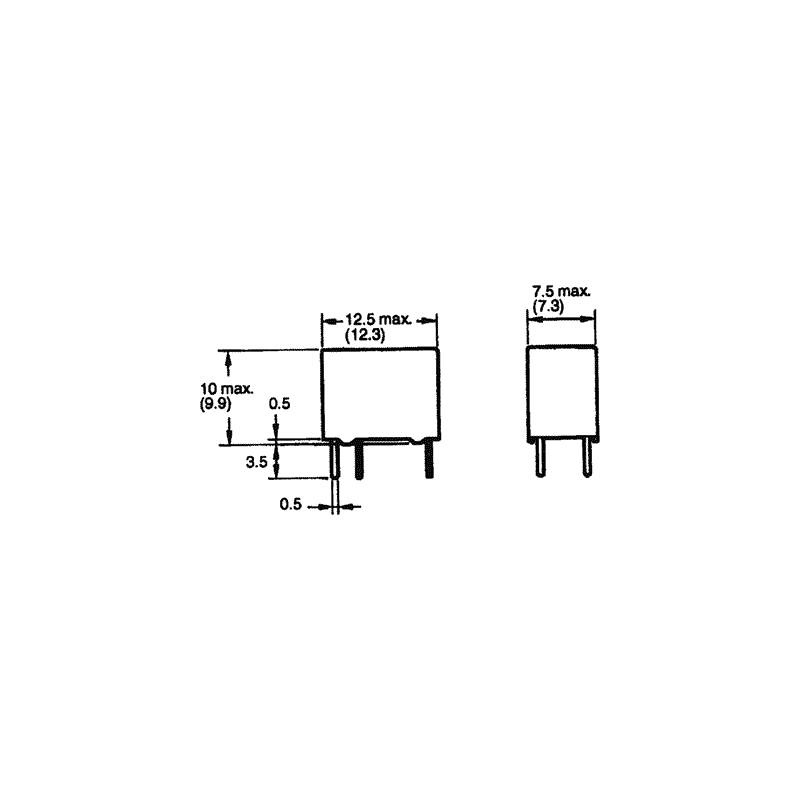

• RELEU MINI 5 V/1 A 167 R - Img 1

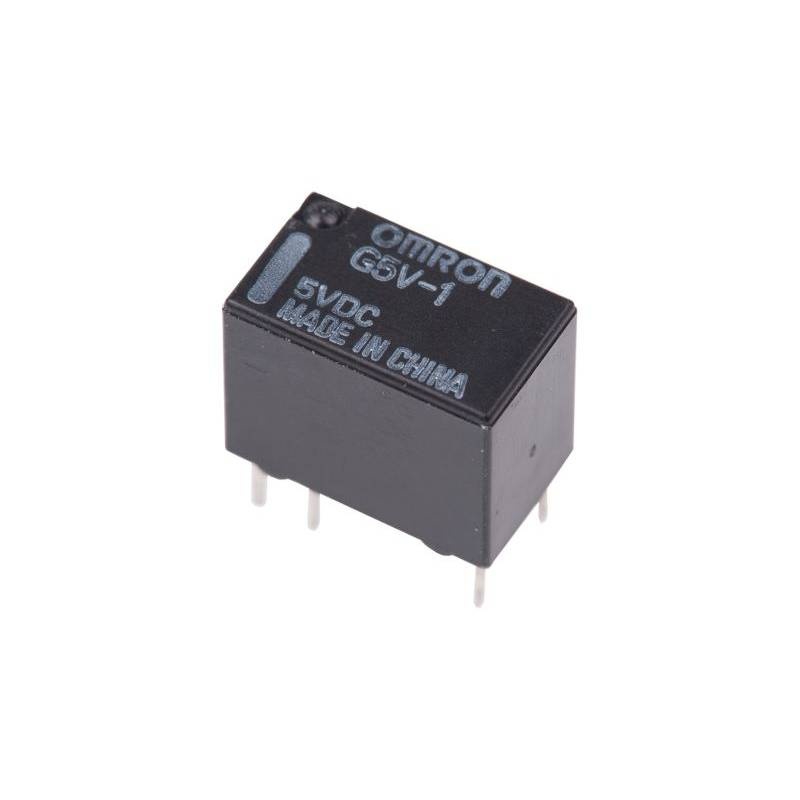

  • RELEU MINI 5 V/1 A 167 R - Img 2

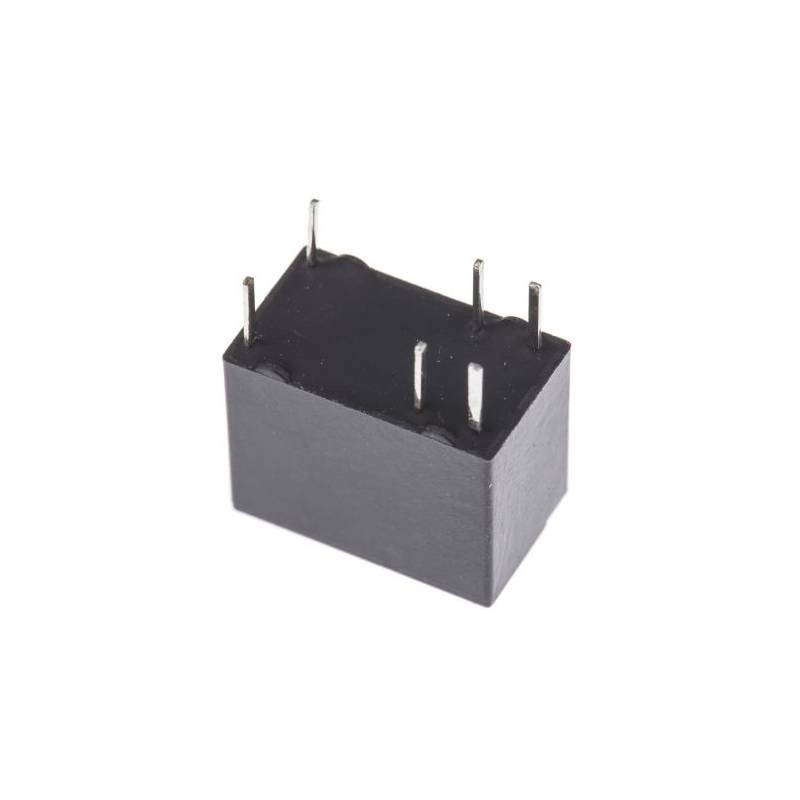

  • RELEU MINI 5 V/1 A 167 R - Img 3

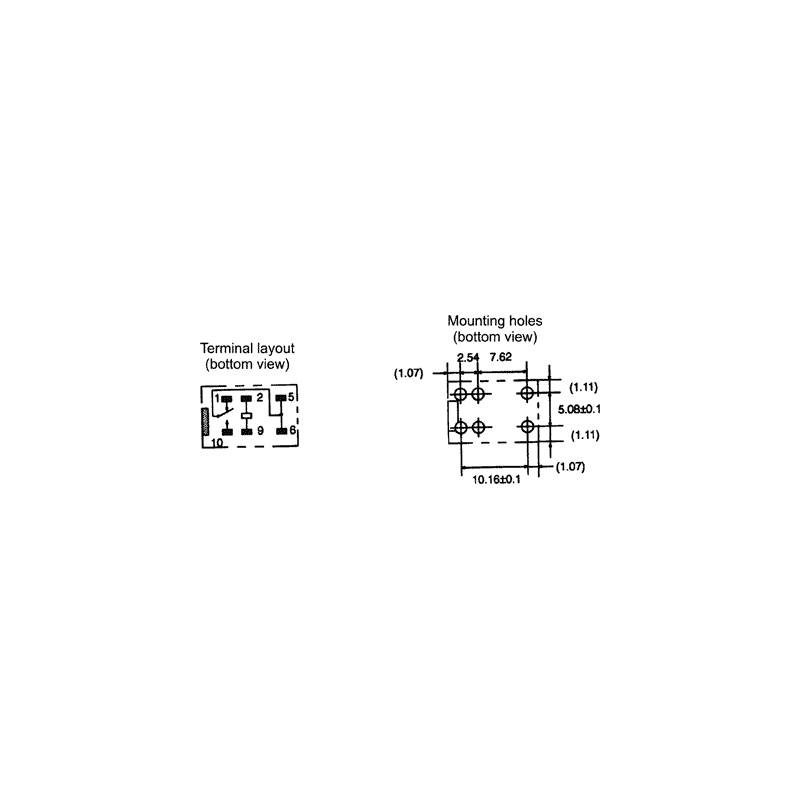

  • RELEU MINI 5 V/1 A 167 R - Img 4

RELEU MINI 5 V/1 A 167 R

Cod produs - SKU 4149
PN: G5V1-5
In stoc

Releu Omron SPDT; Ubobina: 5VDC, 0,5A/125V AC, 1A/24V DC

11,00 LEI
9,09 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 25
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features:
• Wash tight construction
• Wide switching capacity: 1mA...1A
• Highly sensitive coil: 150mW
• Insertable in a 10-pole IC socket
• Conforms to FCC (part 68) requirements for coil to contacts

Technical Specifications :
• Contact: SPDT (Single Crossbar)
• Contact Material: Silver, Gold-Plated
• Rated Current: 1A
• Max. Switching Voltage: 125V AC / 60V DC
• Switching Power: 30W / 62,5VA
• Operate/Release Time: 5/5ms
• Testing Voltage (50/60Hz; 1 Min.)
• Coil/Contact: 1000V AC
• Lifetime
• Mechanical: 5x106 Operations
• Electrical: 1x105 Operations
• Operating Temperature: -40...+70°C
• Weight Approx.: 2g

Coil Data:
• UN [V DC] : 5
• Umax. [V] : 10
• UAn [V] : 4
• UAb. [V] : 0,5
• IN [mA] : 30,0
• RN [Ohm] : 167
UN = Rated Voltage, Umax. = Maximum Operating Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, RN = Coil Resistance; All Specifications Measured at 23°C

Denumire / cod producator: Omron G5V1 5VDC



Detalii

SKU
4149
Categorii
Relee
Tip releu
miniatura
Tip contacte
SPDT
Tensiune nominala bobina
5 V DC
Tensiune max. comutata
125V AC
Temperatura °C
- 40...70
Sarcina admisibila [DC]
1A / 24V DC
Sarcina admisibila [AC]
0,5A / 125V AC
Montare
PCB
Curent max. contacte [A]
1
Descriere scurta

Releu Omron SPDT; Ubobina: 5VDC, 0,5A/125V AC, 1A/24V DC
