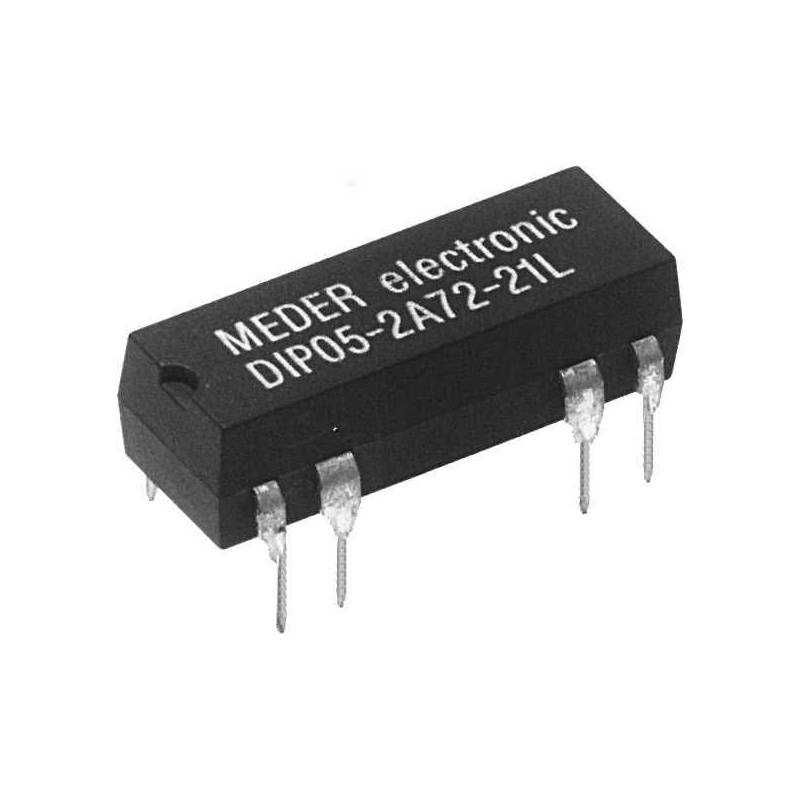

RELEU REED 5V 2x1A CI

Cod produs - SKU 14029
PN: DIP052A7221L
Stoc epuizat

Releu reed DPST-NO, Ubobina: 5V DC, 1A / max. 200V DC, max. 200V AC

34,00 LEI
28,10 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Acest produs nu este disponibil momentan. Vrei sa te anuntam cand revine?
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features

• DPST-NO
• Fully encapsulated
• Flux sealed construction
• Plug-in a 14-pole DIP-IC socket (see note)

Technical Specifications

Insulation Resistance (Coil/Contacts): 100GΩ
Insulation (Coil/Contacts): 1.500V DC
Temperature Range: -20...+70°C
Operate Time (incl. Bounce): 0,5ms
Release Time: 0,1ms
Vibration Resistance (50...500Hz): 20G
Soldering Temperature/Time: 260°C/10s
Contact Data

Configuration: DPST-NO
Contact Resistance: 150mW
Switching Capacity, Max.: 15W
Switching Voltage, Max.: 200V DC
Switching Current, Max.: 1,0A
Current after Closure, Max.: 1,25A
Breakdown Voltage, Min.: 250V DC
Coil Data

Coil Type:
DIP_21L: Non-Polarized, Monostable

Denumire / cod producator: Meder DIP05-2A72-21L

Detalii

SKU
14029
Categorii
Relee
Tip releu
reed
Tip contacte
DPST-NO
Tensiune nominala bobina
5 V DC
Tensiune max. comutata
200V AC
Temperatura °C
-20...70
Montare
PCB sau Soclu
Curent max. contacte [A]
1
Descriere scurta

Releu reed DPST-NO, Ubobina: 5V DC, 1A / max. 200V DC, max. 200V AC
