Rezistenta 5.6/25 W ALUMINIU

Cod produs - SKU 10913
PN: RG5E6
Stoc epuizat
25,50 LEI
21,07 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Acest produs nu este disponibil momentan. Vrei sa te anuntam cand revine?
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Ce spun clientii

Descriere

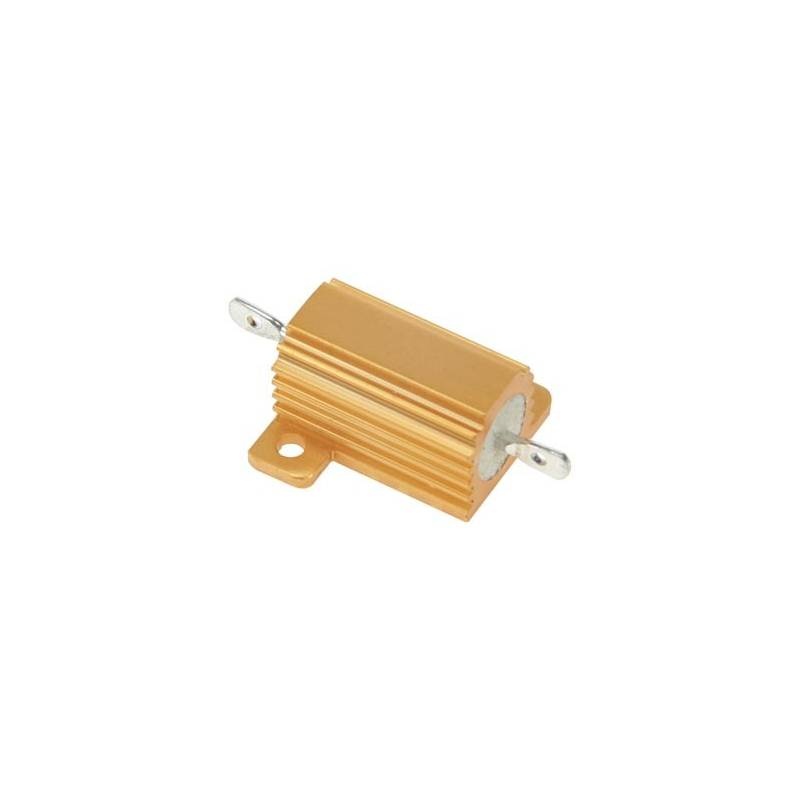

These wirewound 25W resistors can handle continuous high power dissipation in a compact size. The resistor is moulded in an anodized aluminium heat sink for maximum heat dissipation.

Features
• applications: instrumentation, TV's and audio systems, video recorders, computers, ...

Specifications
• resistance: 5.6 ohm
• power: 25W
• resistance tolerance: ± 5%
• temperature coefficient: ± 200ppm/°C
• load: delta R/R < ±1% + 0.05 ohms (surface temperature rise 350°C max.)
• short-time overload: delta R/R < ±2% + 0.05 ohms (100% rated power 5s)
• insulation resistance: 500VDC / min. 100M ohms
• dielectric withstanding voltage: 3000VAC, 60s

Detalii

SKU
10913
Categorii
Rezistoare 25W - Aluminiu
