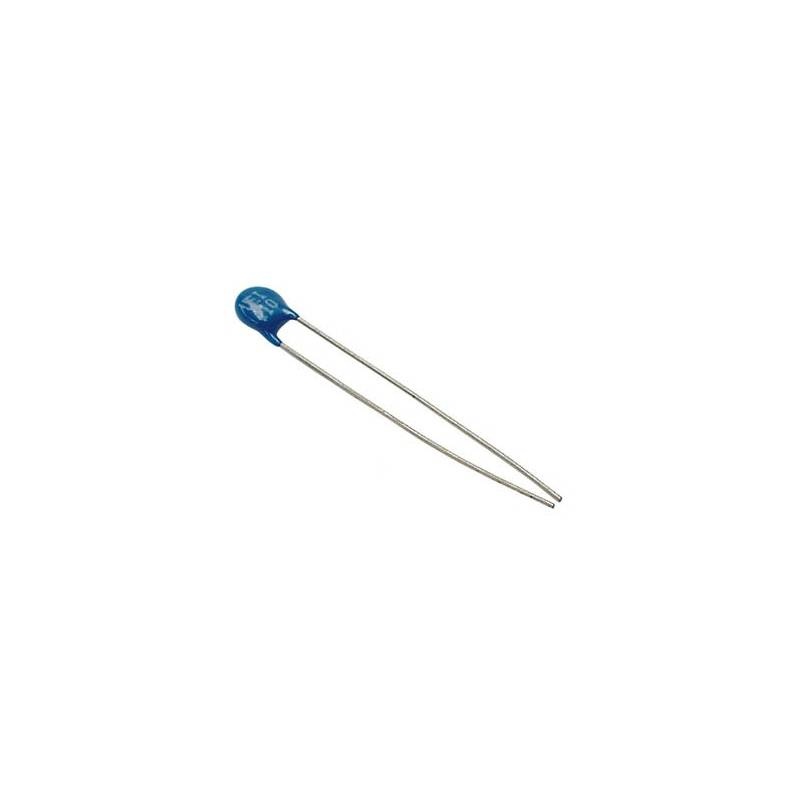

TERMISTOR 47 K

Cod produs - SKU 2033
PN: K164NK047-10
In stoc
4,50 LEI
3,72 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 5
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features

• Lacquer-coated thermistor disc
• 2,0mm lacquer-free from the lower rim of the disc
• Tinned copper leads
• Pitch 5mm
Application
• Temperature compensation, measurement and control

Technical Specifications

Climatic Category (IEC68-1): 55/125/21
Power, Max. (25°C): 450mW
Resistance Tolerance: ±10%
Nominal Temperature: +25°C
Temperature Range: -55...+125°C
Dissipation Factor (in Air): Approx. 7,5mW/K
Thermal Cooling Time Constant (in Air): Approx. 20s
Heat Capacity: Approx. 150mJ/K

Labelling

Resistance value marked
