TERMISTOR NTC 1K

Cod produs - SKU 2361
PN: K164NK001-10
In stoc
5,50 LEI
4,55 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 3
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features

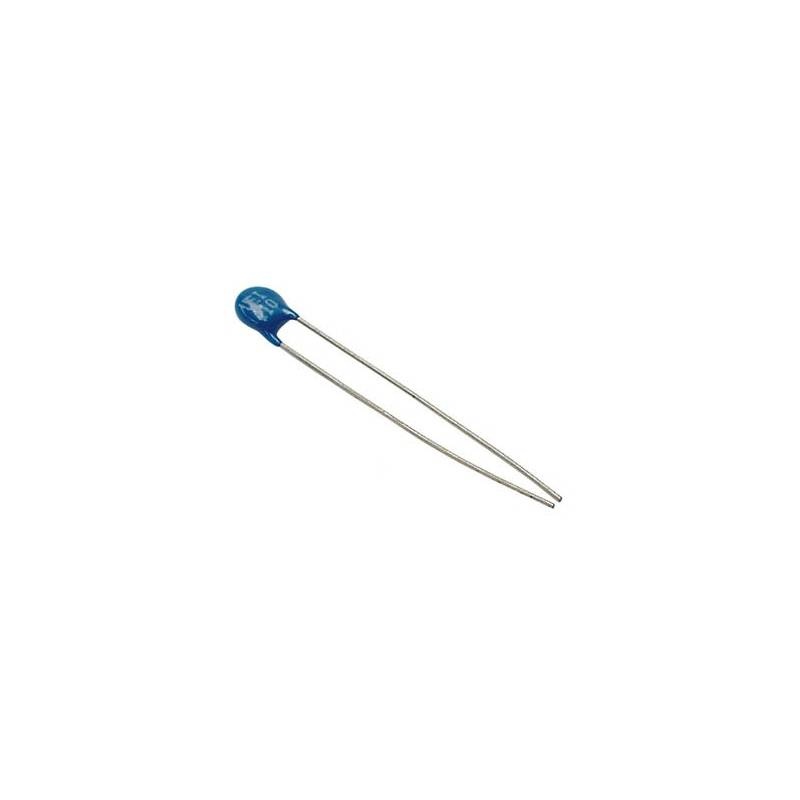

• Lacquer-coated thermistor disc
• 2,0mm lacquer-free from the lower rim of the disc
• Tinned copper leads
• Pitch 5mm

Application
• Temperature compensation, measurement and control

Technical Specifications
• Climatic Category (IEC68-1): 55/125/21
• Power, Max. (25°C): 450mW
• Resistance Tolerance: ±10%
• Nominal Temperature: +25°C
• Temperature Range: -55...+125°C
• Dissipation Factor (in Air): Approx. 7,5mW/K
• Thermal Cooling Time Constant (in Air): Approx. 20s
• Heat Capacity: Approx. 150mJ/K

Labelling
• Resistance value marked
