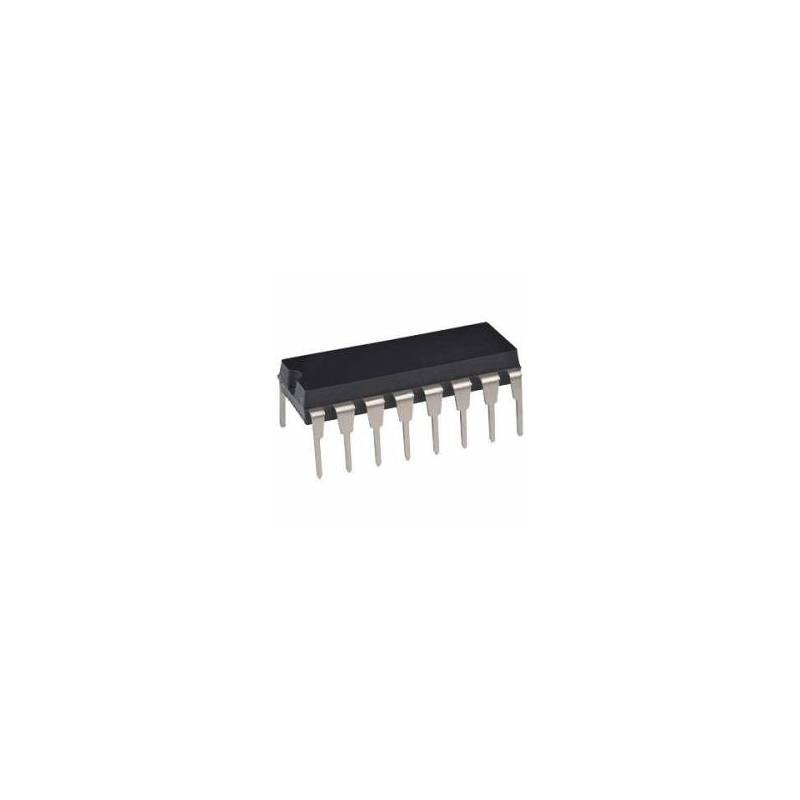

Circuite CMOS seria 4000 CD40193
Descriere
Features
• CD40192BMS - BCD Type
• CD40193BMS - Binary Type
• High Voltage Type (20V Rating)
• Individual Clock Lines for Counting Up or Counting
Down
• Synchronous High-Speed Carry and Borrow Propagation Delays for Cascading
• Asynchronous Reset and Preset Capability
• Medium Speed Operation
- fCL = 8MHz (typ.) at 10V
• 5V, 10V and 15V Parametric Ratings
• Standardize Symmetrical Output Characteristics
• 100% Tested for Quiescent Current at 20V
• Maximum Input Current of 1µA at 18V Over Full Package Temperature Range; 100nA at 18V and +25
o
C
• Noise Margin (Over Full Package/Temperature Range)
- 1V at VDD = 5V
- 2V at VDD = 10V
- 2.5V at VDD = 15V
• Meets All Requirements of JEDEC Tentative Standard
No. 13B, “Standard Speciï¬cations for Description of
‘B’ Series CMOS Devices”
