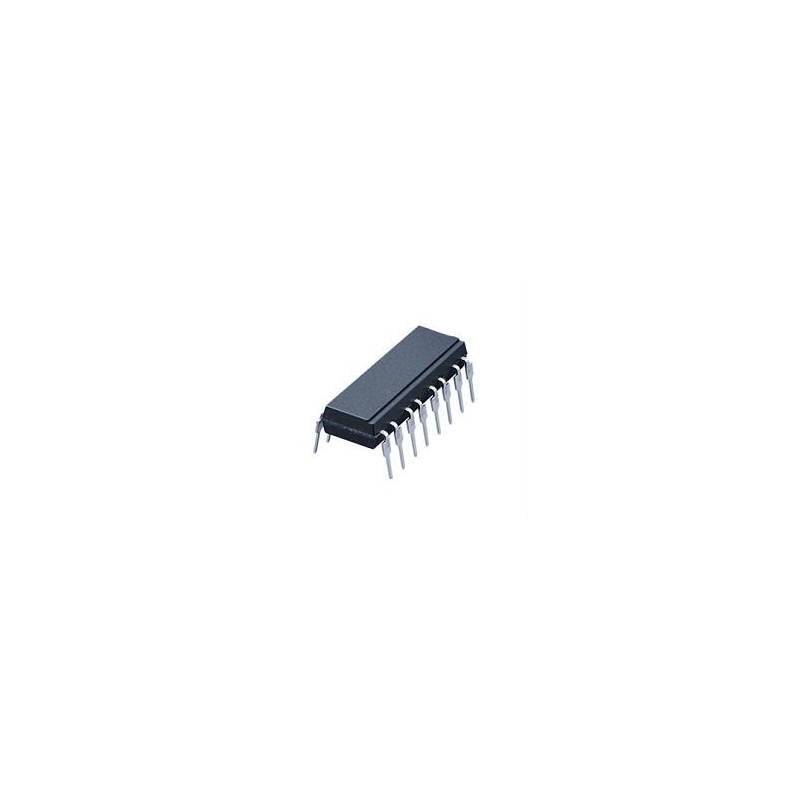

Circuite CMOS seria 4000 CD4543
â– Direct LED driving capability
â– 100% tested for quiescent current at 20 V
â– Maximum input current of 1 /jA at 18 V over full package-temperature range; 100 nA at 18 Vand2S°C
â– Noise margin (full package-temperature range)= 1 V at Vqq=5 V
2 Vat Vqd=10 V 2.5VatVDD=15 V • 5~V, 10-V, and 1S-V parametric ratings
â– Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
Applications:
â– Instrument display driver
â– Dashboard display driver
â– Computer/calculator display driver
â– Timing device driver (clocks, watches, timers)
Descriere
Features:
â– Display blanking of all illegal input combinations m Latch storage of code
â– Capability of driving two low power TTL loads, two HTL loads, or one low power Schottky load over the full rated-temperature range
â– Pin-for-pin replacement for the CD4056B [with pin 7 tied to V
