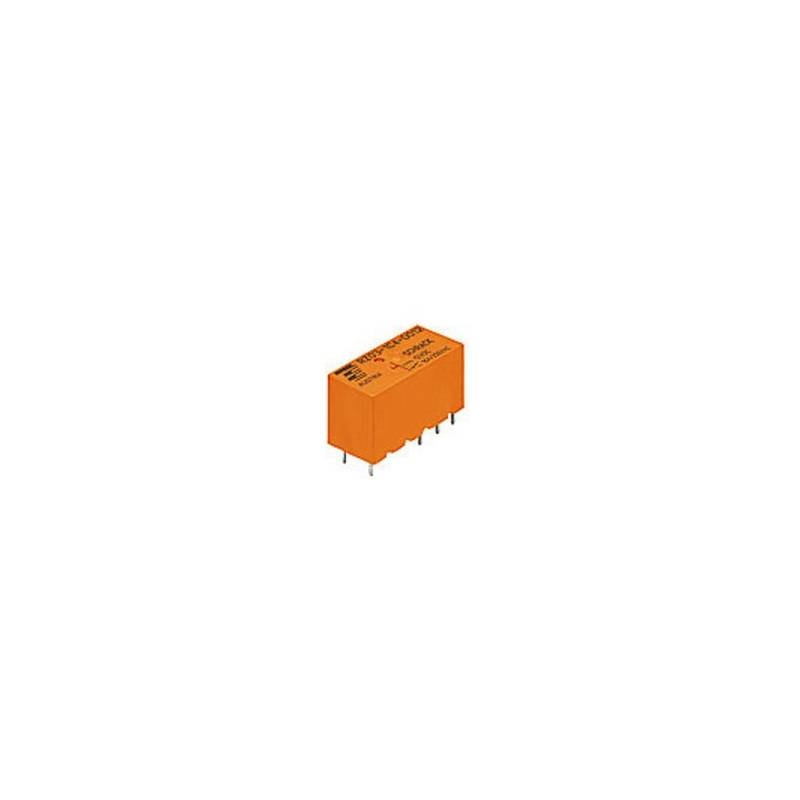

RELEU 24 V/16 A SPDT RZ031C4D024

Cod produs - SKU 17211
PN: RZ031C4D024
In stoc

Releu SPDT, 24V/16A, max. 400V AC

12,50 LEI
10,33 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 11
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Relay SPDT 16A 24V 1440R

Features
• DC reel 400mW
• 5kV/10mm coil contact
• Protection class RTII
• Insulation to IEC60335-1

Technical Specifications
• Contact
• Contact Material: AgNi 90/10
• Rated Current: 16A
• Max. Switching Voltage: 400V AC
• Max. Switching Power: 4000VA
• Creepage/Clearance, Min.: 0/14mm
• Operate/Release Time: 8/6ms
• Testing Voltage
- Coil/Contact: 5000Vrms
- Opening Contact: 1000Vrms
• Lifetime Mechanical, Min.: 10x10^6 Operations
• Operating Temperature -40...+85°C
• Weight Approx.: 10g


Coil Data
• Rated Voltage: 24V DC
• Operate Voltage: 16.8V
• Release Voltage: 2.4V
• Rated Power: 400mW / VA
• Coil Resistance: 1440 Ohm
All Specifications Measured at 23°C

Denumire / cod producator: TE Connectivity 2-1415899-3

Detalii

SKU
17211
Categorii
Relee
Greutate
0.01 kg
Tip releu
miniatura
Tip contacte
SPDT
Tensiune nominala bobina
24V DC
Tensiune max. comutata
400V AC
Temperatura °C
- 40...85
Sarcina admisibila [AC]
16A / 250V AC
Montare
PCB
Curent max. contacte [A]
16
Descriere scurta

Releu SPDT, 24V/16A, max. 400V AC
