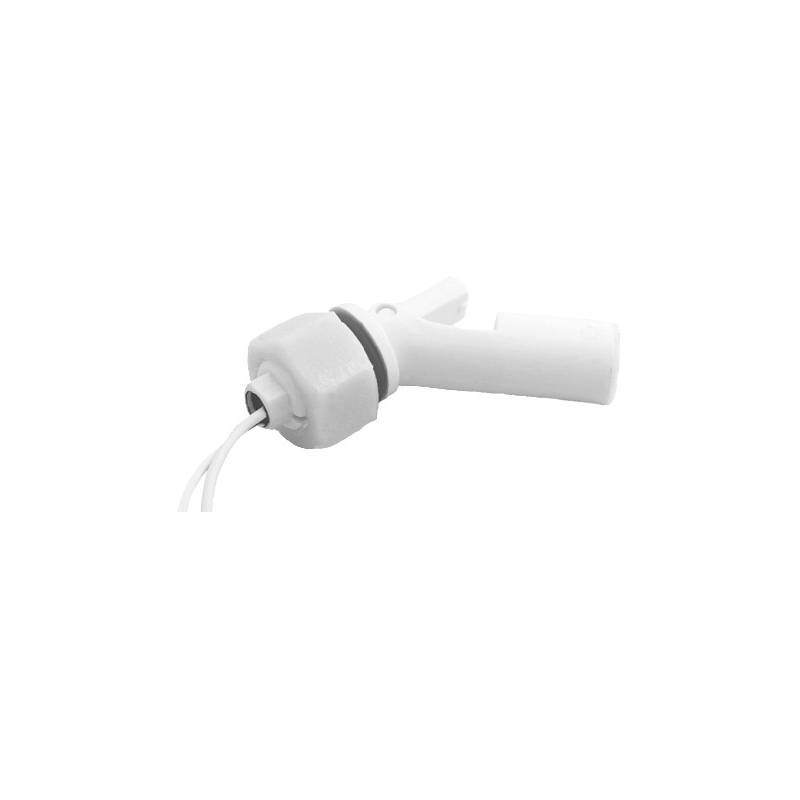

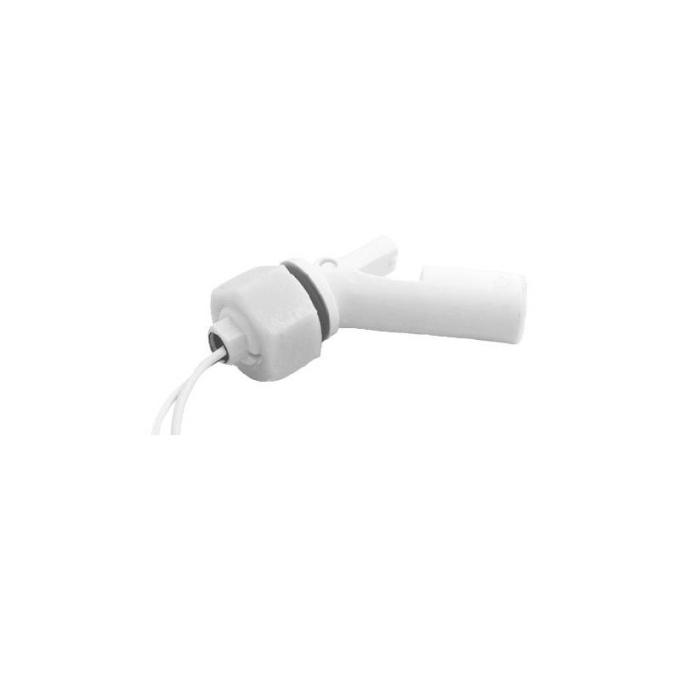

RELEU DE NIVEL - MONTARE ORIZONTALA

Cod produs - SKU 15088
PN: 3851
In stoc

Senzor de nivel lichid Meder, SPDT, montare orizontala, 500mA; 10W

58,00 LEI
47,93 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 17
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features
• To monitor point levels in containers for automotive applications, measuring and control and domestic applications
• Suitable for use in plain or acidic water
• Chimney, float and screw made from polypropylene (PP)
• Sealed with nitril-rubber
• Sealing material CY221
• Leads pass through a 500mm long round cable, LIYY 2 x 0,14mm2
• Cable end cut, 30mm stripped, core approx. 5mm stripped and tinned

Application: for horizontal installation in containers

Technical Specifications
• Type of Contact: SPST
• Switching Capacity, Max.: 10W
• Switching Voltage, Max.: 200V DC
• Switching Current, Max.: 0,5A
• Current at Closed Contacts: 1,0A
• Contact Resistance, Max.: 150mW
• Breakdown Voltage, Min.: 250V DC
• Operate Time incl. Bounce: 0,5ms
• Release Time: 0,1ms
• Temperature Range: -20...+90°C

Denumire / cod producator: Meder LS-03-1A66-PP-500W

Detalii

SKU
15088
Categorii
Relee
Tip releu
de nivel
Tip contacte
SPST
Tensiune max. comutata
200V DC
Temperatura °C
-20...90
Montare
Pe panou
Curent max. contacte [A]
1
Descriere scurta

Senzor de nivel lichid Meder, SPDT, montare orizontala, 500mA; 10W
