RELEU DE NIVEL - MONTARE VERTICALA

Cod produs - SKU 15087
PN: 3850
In stoc

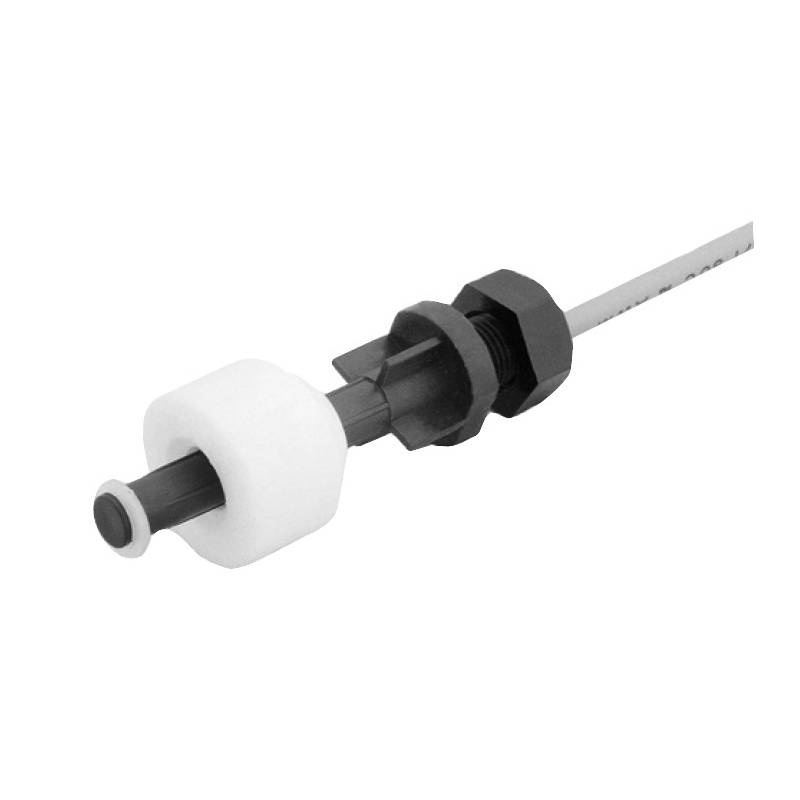

Senzor de nivel lichid Meder, SPDT, montare verticala, 500mA; 10W

56,00 LEI
46,28 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 2
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features
• To monitor point levels in containers for automotive applications, measuring and control and domestic applications
• Suitable for use in plain or acidic water
• Chimney, float and screw made from polypropylene (PP)
• Sealed with nitril-rubber
• Sealing material CY221
• Leads pass through a 500mm long round cable, LIYY 2 x 0,14mm2
• Cable end cut, 30mm stripped, core approx. 5mm stripped and tinned

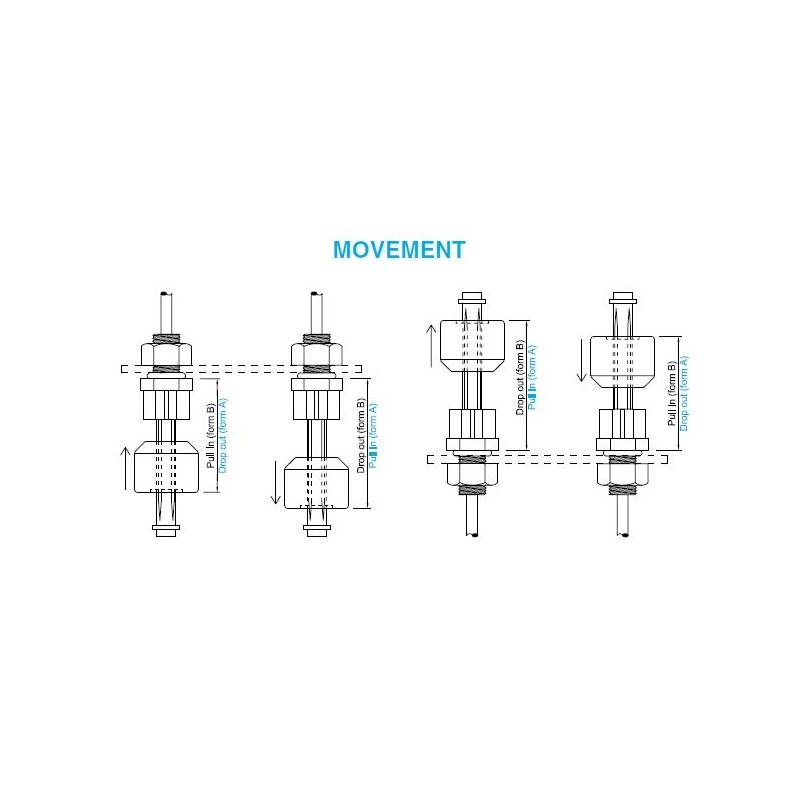

Application: for vertical installation in containers

Technical Specifications
Type of Contact: SPST
Switching Capacity, Max.: 10W
Switching Voltage, Max.: 200V DC
Switching Current, Max.: 0,5A
Current at Closed Contacts: 1,0A
Contact Resistance, Max.: 150mW
Breakdown Voltage, Min.: 250V DC
Operate Time incl. Bounce: 0,5ms
Release Time: 0,1ms
Temperature Range: -20...+90°C

Denumire / cod producator: Meder LS-02-1A66-PP-500W

Detalii

SKU
15087
Categorii
Relee
Tip releu
de nivel
Tip contacte
SPDT
Tensiune max. comutata
200V DC
Temperatura °C
-20...90
Montare
Pe panou
Curent max. contacte [A]
1
Descriere scurta

Senzor de nivel lichid Meder, SPDT, montare verticala, 500mA; 10W
