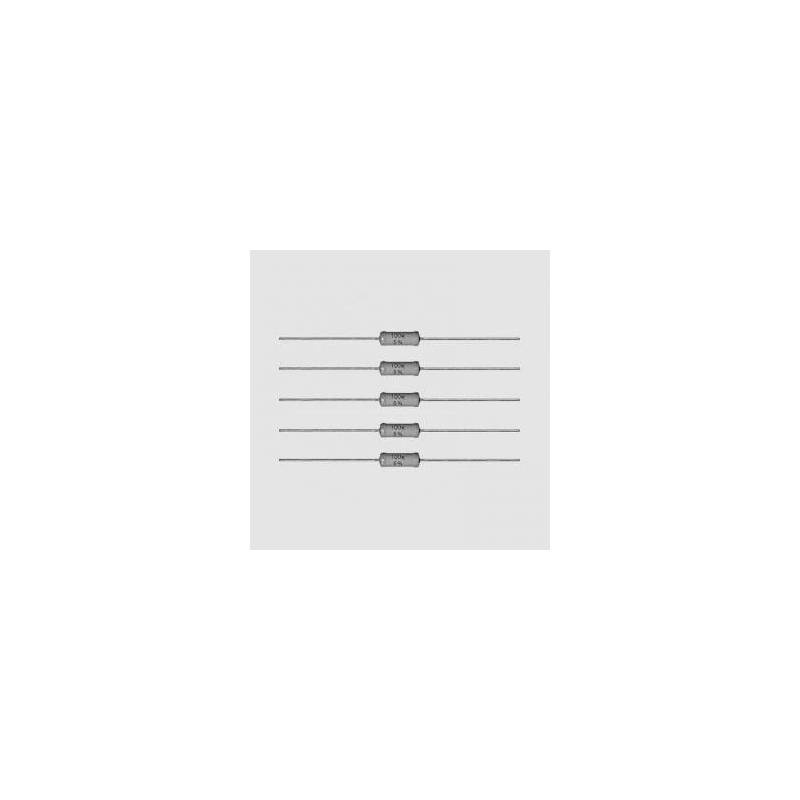

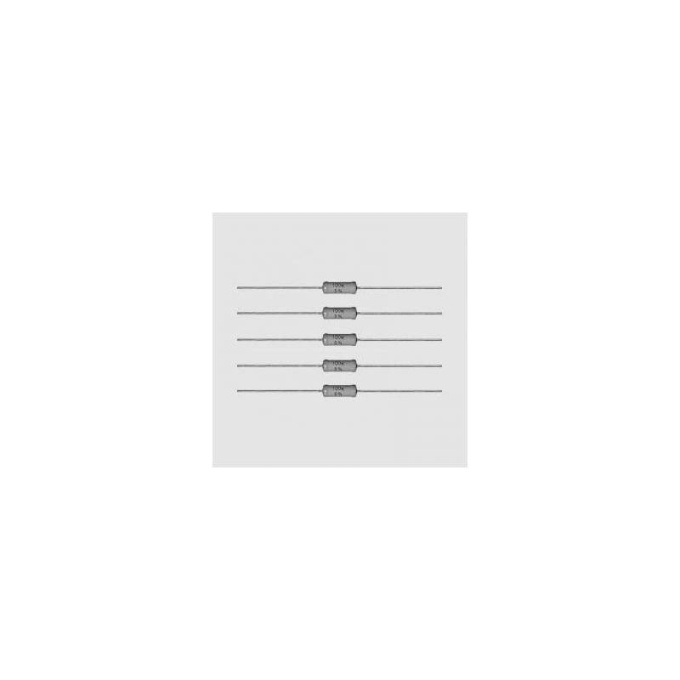

270 KOHM/3W 5% METAL OXID

Cod produs - SKU 9397
PN: 14039
In stoc
3,50 LEI
2,89 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

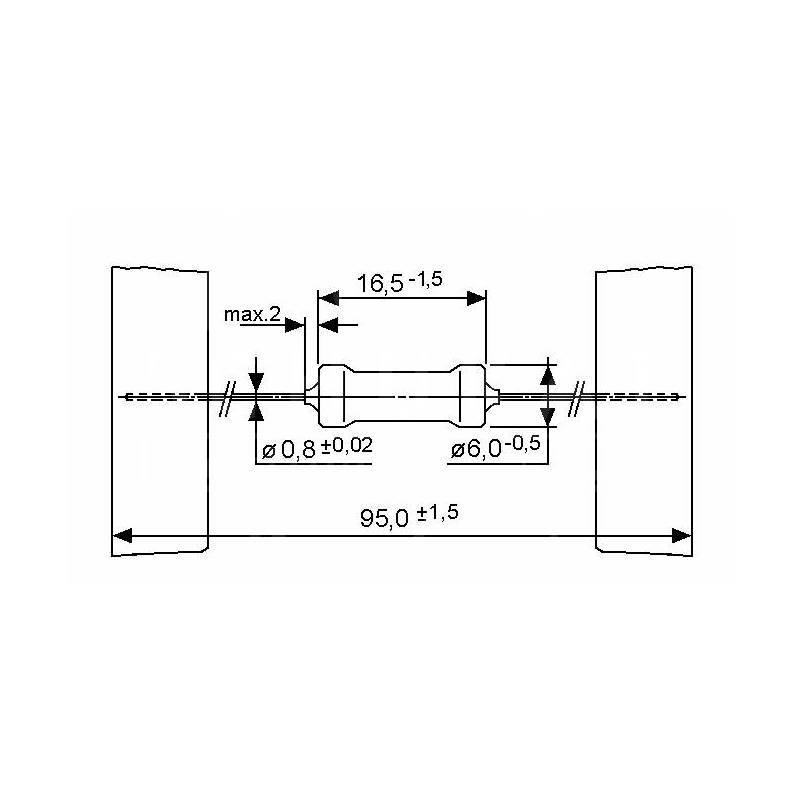

Resistor 0617 3W 5% 270K Taped

Features
• Rugged metal oxide film
• High power dissipation in small size
• High temperature coating, non-flammable

Technical Specifications
• Resistance Tolerance: ±5%
• Power Rating (70°C): 3,0W
• Operating Voltage: 750Vrms
• Thermal Resistance: 60K/W
• Insulation Resistance, Min.: 10^3MOhm
• Insulation Voltage (1 Min): 500Vrms
• Temperature Coefficient: ±200x10^-6/K
• Temperature Range: -55...+250°C
• Climatic Category: 55/200/56
• Failure Rate (Value Dependent), Max.: 10x10^-9/h
• Terminal Tensile Strength: 40N
• Solderability:1) 2,5s
• Derating: Linear 70°C to 250°C (0W)
1) Solder Globule Test, IEC 60068-2-20-T
