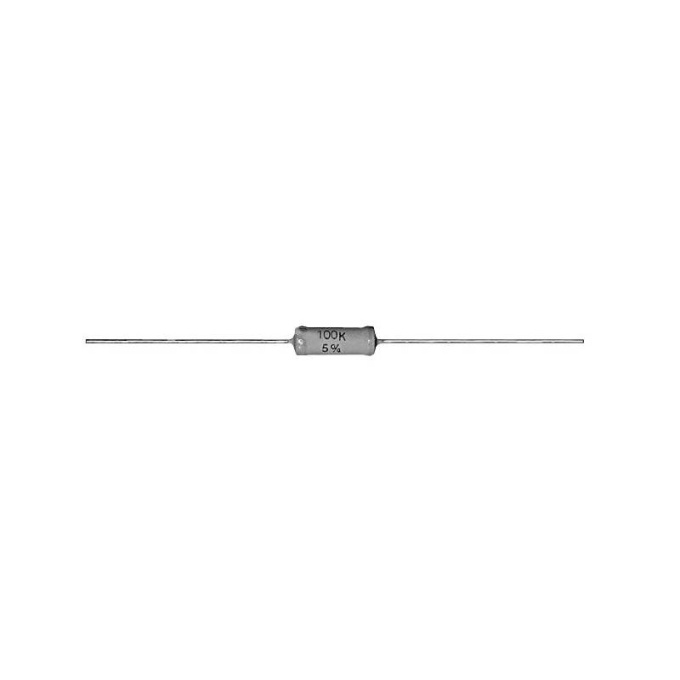

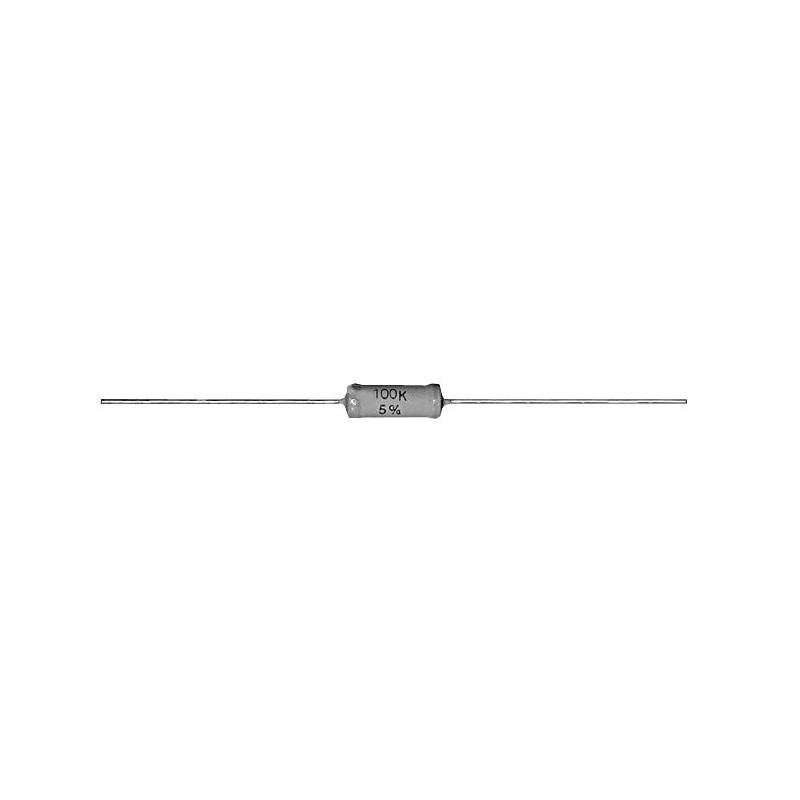

33 KOHM/3W 5% METAL-OXID

Cod produs - SKU 10974
PN: 1732
In stoc
1,50 LEI
1,24 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features
• Rugged metal oxide film
• High power dissipation in small size
• High temperature coating, non-flammable

Technical Specifications
• Resistance Value: Row E12, Reduced
• Resistance Tolerance: ±5%
• Power Rating (70°C): 3,0W
• Operating Voltage: 750Vrms
• Thermal Resistance: <70K/W
• Insulation Resistance: >1000M
• Insulation Voltage (1 Min): 500Vrms

• Temperature Coefficient:10-6/K
• Temperature Range: -55...+250°C
• Climatic Category: 55/200/56

• Failure Rate (Value Dependent), Approx.: <10x10-9/h
• Terminal Tensile Strength: 40N
• Solderability (Solder Globule Test, IEC68-2-20T): 2,5s
• Derating: Linear 70°C to 250°C (0W)

Detalii

SKU
10974
Categorii
Rezistente 3 W - Metal oxid
