33 OHM/3W 5% METAL OXID
Cod produs - SKU
9515
PN: 14130
Stoc epuizat
1,50 LEI
1,24 LEI
(fara TVA)
Costurile de livrare nu sunt incluse
Descriere

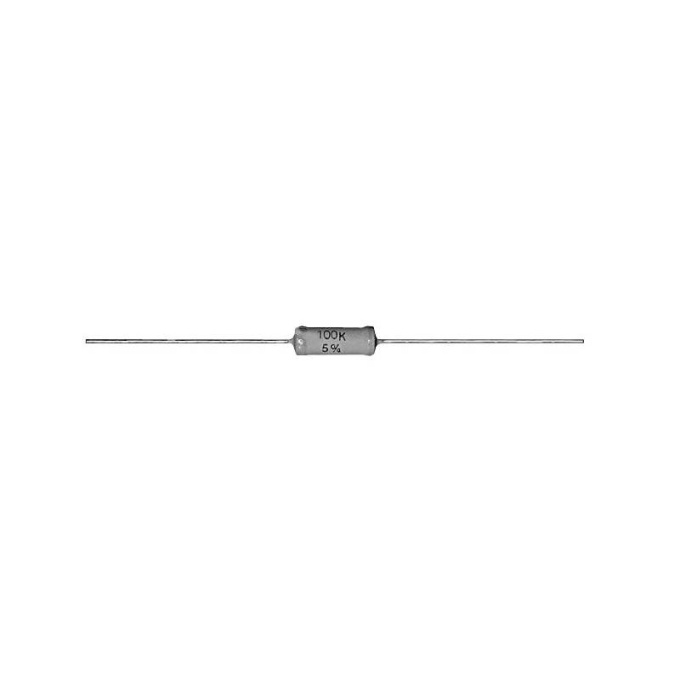

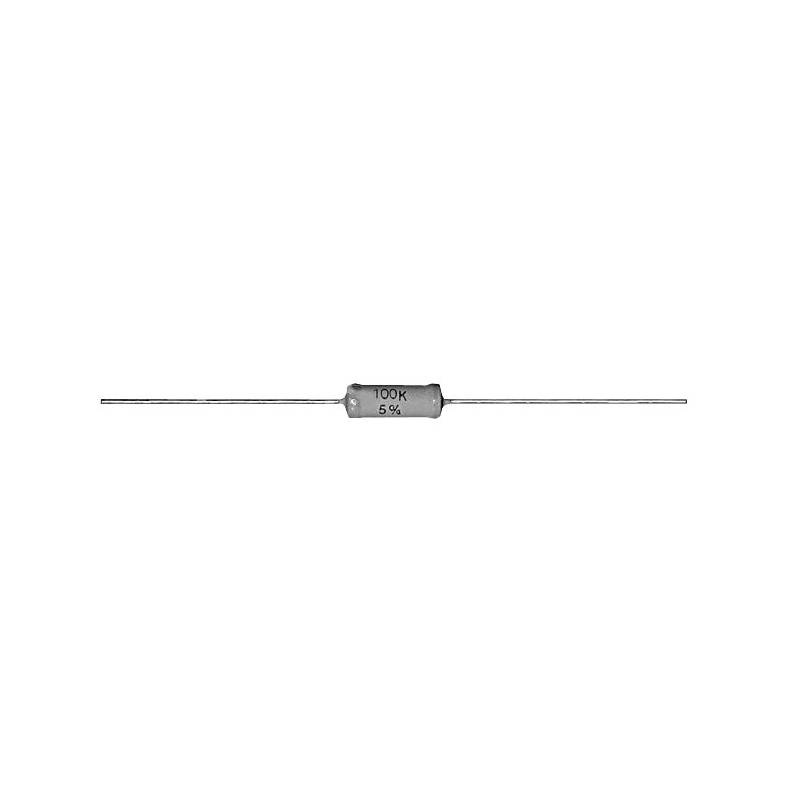

Resistor 0617 3W 5% 33R Taped
Features
• Rugged metal oxide film
• High power dissipation in small size
• High temperature coating, non-flammable
Technical Specifications
• Resistance Value: Row E12, Reduced
• Resistance Tolerance: ±5%
• Power Rating (70°C): 3,0W
• Operating Voltage: 750Vrms
• Thermal Resistance: <70K/W
• Insulation Voltage (1 Min): 500Vrms
• Temperature Range: -55...+250°C
• Climatic Category: 55/200/56
• Terminal Tensile Strength: 40N
• Solderability (Solder Globule Test, IEC68-2-20T): 2,5s
• Derating: Linear 70°C to 250°C (0W)
