RELEU 24 V/3 A 1xA 4800 R

Cod produs - SKU 7100
PN: 12449
In stoc

Releu SPST-NO, Ubobina: 24VDC, 3A/240VAC; 3A/30V DC

14,90 LEI
12,31 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features
• Wash tight construction RTIII
• Ultra-slim: 5mm
• Cadmium-free contacts
• Sensitive coil 120mW
• 3kV coil contact
• Insulation class meets EN 60664-1

Application
Centralised and decentralised heating control, extremely narrow interface elements, interface technology, timers, PLCs, I/O modules

Technical Specifications

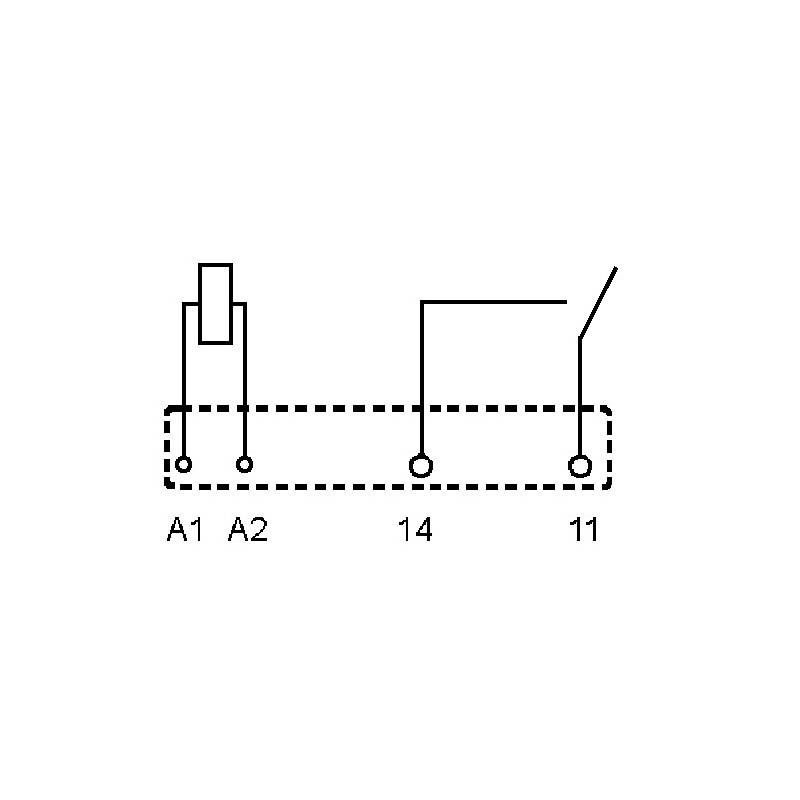

• Contact: SPST-NO
• Contact Material: AgNi
• Rated Current: 3A
• Max. Switching Current (4s): 5A
• Max. Switching Voltage: 277V AC
• Max. Switching Power (AC): 750VA
• Creepage/Clearance: 3,5/3,5mm
• Operate/Release Time: 5/2ms
• Testing Voltage
- Coil/Contact: 3000Vrms
- Opening Contact: 750Vrms
• Lifetime
- Mechanical: 20 x 1 000 000 Cycles
- Electrical (3A/250V AC): 1 x 100 000 Cycles
• Operating Temperature: -30...+70°C
• Weight Approx.: 3g
• Rated Voltage: 24V DC
• Operate Voltage: 16.8V
• Release Voltage: 2.4V
• Rated power: 120mW
• Coil Resistance: 48000W
All Specifications Measured at 23°C

Denumire / cod producator: TE Connectivity 3-1461491-6

Detalii

SKU
7100
Categorii
Relee
Tip releu
miniatura
Tip contacte
SPST-NO
Tensiune nominala bobina
24V DC
Tensiune max. comutata
277V AC
Temperatura °C
-30...70
Sarcina admisibila [DC]
3A / 30V DC
Sarcina admisibila [AC]
3A / 240V AC
Montare
PCB
Curent max. contacte [A]
5
Descriere scurta

Releu SPST-NO, Ubobina: 24VDC, 3A/240VAC; 3A/30V DC
