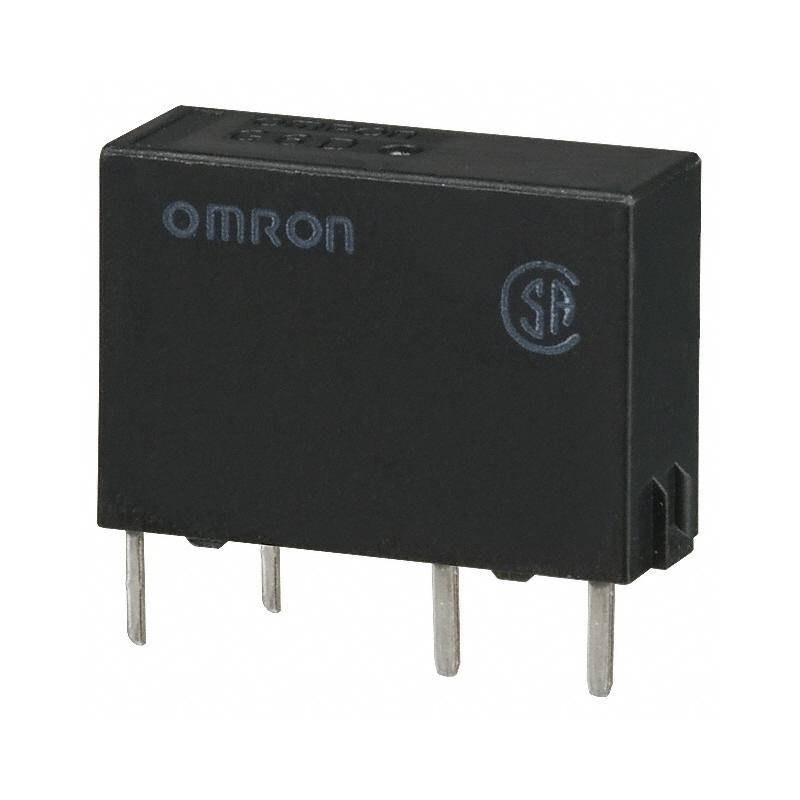

RELEU 5 V/5 A 1xA 125 R OMRON

Cod produs - SKU 7102
PN: 12451
In stoc

Releu Omron, SPST-NO, Ubobina: 5VDC, 5A/250VAC

12,50 LEI
10,33 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features
• Compact design with high switching current 5A
• Washable construction

Technical Specifications
• Contact: SPST-NO
• Contact Material: AgSnIn
• Rated Current: 5A
• Max. Switching Current: 5A
• Max. Switching Voltage: 250V AC / 30V DC
• Max. Switching Power: 1250VA / 150W
• Operate/Release Time: 10/5ms
• Testing Voltage
- Coil/Contact: 3000V AC
- Contact/Contact: 750V AC
• Lifetime
- Mechanical: 20 x 1 000 000 Operations
- Electrical: 70 x 1000 Operations
• Operating Temperature: -25...+70°C
• Weight Approx.: 3g
• Rated Voltage: 5V DC
• Maximum Operating Voltage: 6.5V
• Operate Voltage: 3.5V
• Release Voltage: 0.5V
• Rated Current: 40mA
• Rated Power: 200mW
• Coil Resistance: 125W
All Specifications Measured at 20°C

Denumire / cod producator: Omron G6D-1A-ASI-5DC

Detalii

SKU
7102
Categorii
Relee
Tip releu
miniatura
Tip contacte
SPST-NO
Tensiune nominala bobina
5 V DC
Tensiune max. comutata
250V AC
Temperatura °C
- 25...70 °C
Sarcina admisibila [DC]
5A / 30V DC
Sarcina admisibila [AC]
5A / 250V AC
Montare
PCB sau Soclu
Curent max. contacte [A]
5
Descriere scurta

Releu Omron, SPST-NO, Ubobina: 5VDC, 5A/250VAC
