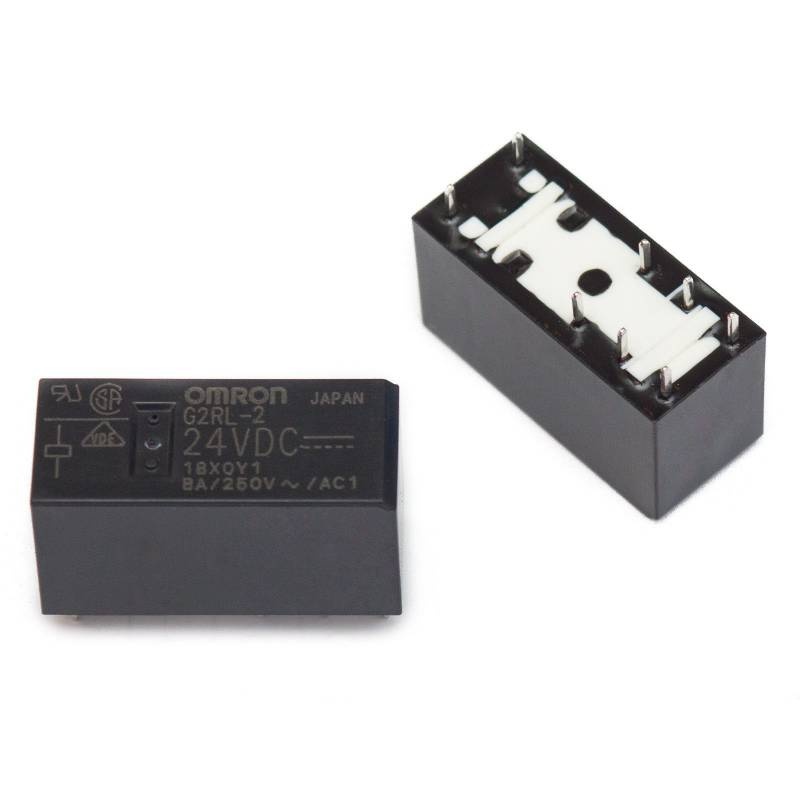

RELEU 24 V/8 A DPDT 1440 R OMRON

Cod produs - SKU 18122
PN: 5222
In stoc

Releu electromagnetic DPDT, Ubobina: 24V DC, 8A / 250V AC, 8A / 30V DC

12,50 LEI
10,33 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Relay DPDT 8A 24V 1440R

Features
• High sensitive coil: 400mV
• 10kV dielectric strength coil/contact

Technical Specifications
• Contact G2RL2_: DPDT
• Contact Material: AgSnIn
• Rated Current: 8A
• Max. Switching Voltage: 440V AC / 300V DC
• Max. Switching Power G2RL2_: 2000VA
• Creepage/Clearance: 8/8mm
• Operate/Release Time: 15/5ms
• Testing Voltage
– Coil/Contact: 5000V AC
– Contact/Contact G2RL2_: 2500V AC
• Lifetime Mechanical: 20x1000000 Operations
• Operating Temperature: -40...+85°C
• Weight Approx.: 12g

Coil Data
• Rated Voltage: 24V DC
• Maximum Operating Voltage: 31.2V
• Operate Voltage: 16.4V
• Release Voltage: 2.4V
• Rated Current: 16.7mA
• Rated Power: 400mW
• Coil Resistance: 1440Ohm
All Specifications Measured at 23°C

Denumire / cod producator: G2RL2-24 Omron

Detalii

SKU
18122
Categorii
Relee
Greutate
0.01 kg
Tip releu
miniatura
Tip contacte
DPDT
Tensiune nominala bobina
24V DC
Tensiune max. comutata
400V AC
Temperatura °C
- 40...85
Sarcina admisibila [DC]
8A / 30V DC
Sarcina admisibila [AC]
8A / 250V AC
Montare
PCB
Curent max. contacte [A]
8
Descriere scurta

Releu electromagnetic DPDT, Ubobina: 24V DC, 8A / 250V AC, 8A / 30V DC
