SOLENOID CU RAMA 1110BD-12 PUSH

Cod produs - SKU 675
PN: 12164
Stoc epuizat
50,00 LEI
41,32 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Acest produs nu este disponibil momentan. Vrei sa te anuntam cand revine?
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

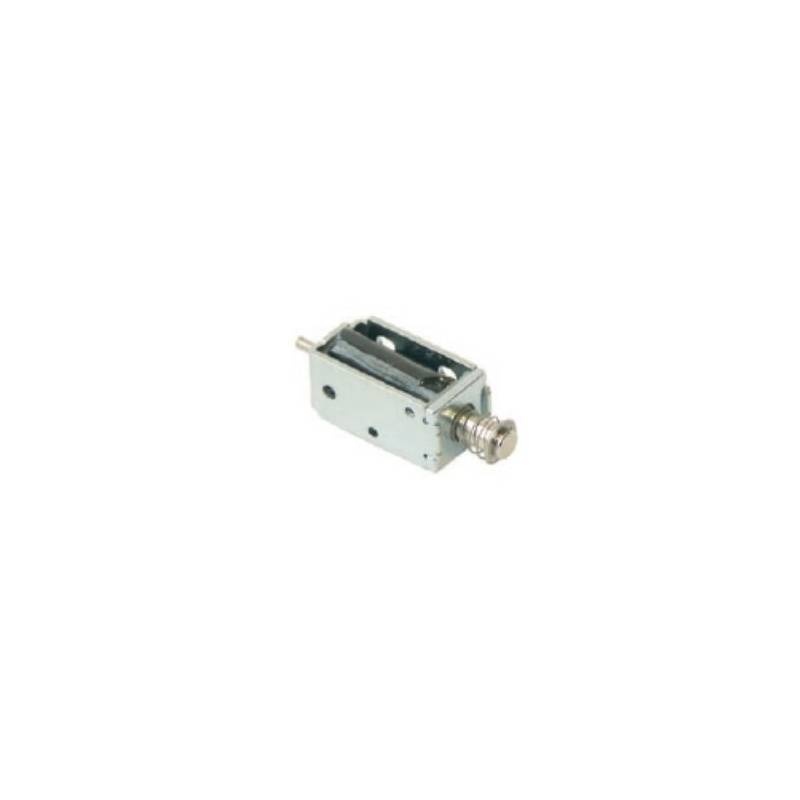

Solenoid Framed 1110b D 12V

Features
• Cylindrically housing
• with fixing screw
• Stable housing for use in harsh environment
• Available as pull magnet without ecuperating spring or push magnet with recuperating spring
• Min. 200mm connecting lead

Technical Specifications
• Voltage: 12V DC
• Current: 0.019A
• Power at 100%ED: 1.1A
• Holding Force: 0.120kg
• Start Force: 0.018kg
• End Force: 0.2kg

Dimensions and Weights
• ØxL: 21.3x11x10mm
• Weight Solenoid: 10g
• Weight Ancher: 2g
• Screw Thread: 2-2*M2

Coil Data:
• Duty Cycle: 50%
• Duty Cycle, max.: 50sec
• Capacity, max. at 20°C: 2.2W

Detalii

SKU
675
Categorii
Solenoizi
Greutate
0.01 kg
