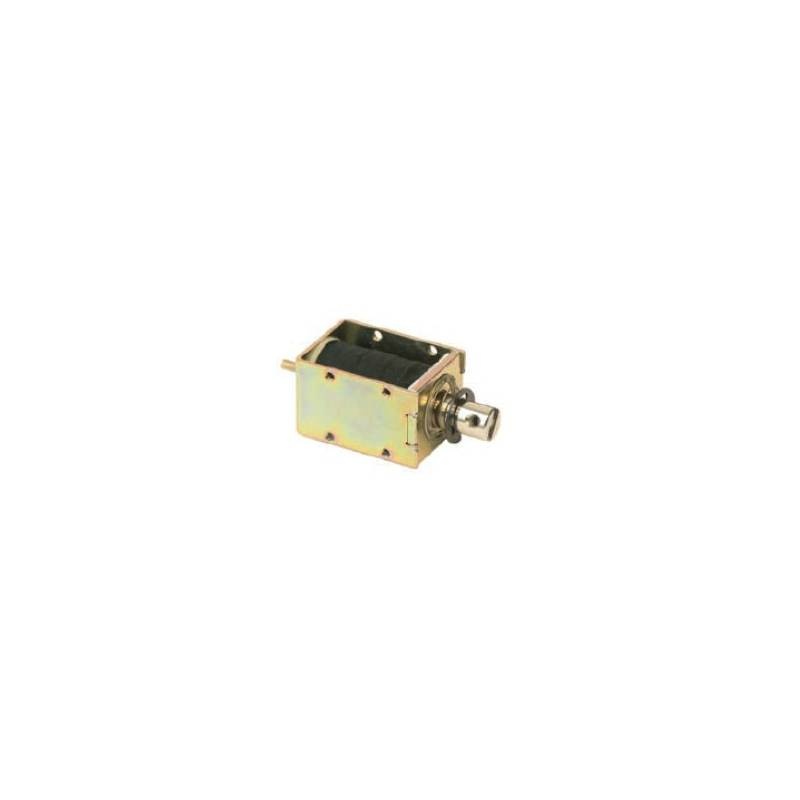

SOLENOID CU RAMA 2924BZ-12 PULL

Cod produs - SKU 427
PN: 10284
In stoc
89,90 LEI
74,30 LEI (fara TVA)
Costurile de livrare nu sunt incluse
Stoc 1
Toate preturile sunt exprimate in RON si includ TVA

Transport gratuit pentru comenzi de minim 500 RON (TVA inclus).
Taxa procesare 20 RON (TVA inclus) pentru comenzi sub 50 RON (TVA inclus).
Pentru oferte si termene de livrare va rugam sa ne scrieti la adresa contact@conexelectronic.ro.
EAN 5949203914835
  • Descriere
  • Detalii
  • Fisiere asociate
  • Ce spun clientii

Descriere

Features
• Framed Magnet
• with mounting holes
• Available as pull version or push version include recuperating spring
• Low weight because of open framed housing
• Open framed with closed brace
• Min. 200mm connecting lead

Technical specifications:
• Voltage: 12V DC
• Current: 0.375A
• Power at 100% ED: 4.5A
• Holding force: 1.1kg
• Start force: 0.2kg
• End force: 1.022kg

Dimensions and weights:
• Ø x L: 40 x 29 x 24mm
• Weight solenoid: 122g
• Weight ancher: 22g
• Screw thread: 2-4*M3*0.5

Coil data:
• Duty cycle: 100%
• Capacity, max. at 20°C: 4.5W

Detalii

SKU
427
EAN
5949203914835
Categorii
Solenoizi
Greutate
0.12 kg
